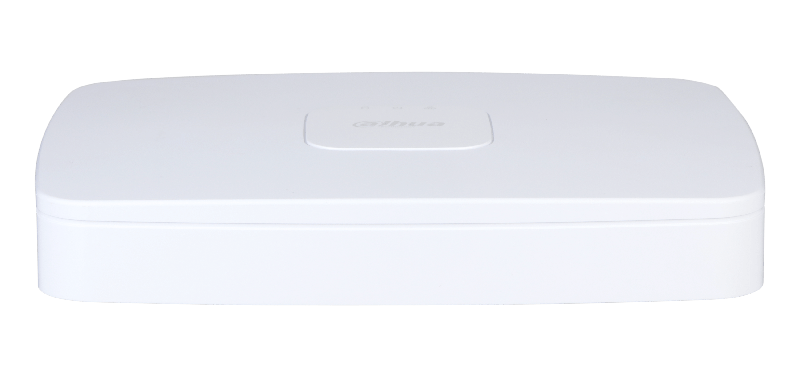

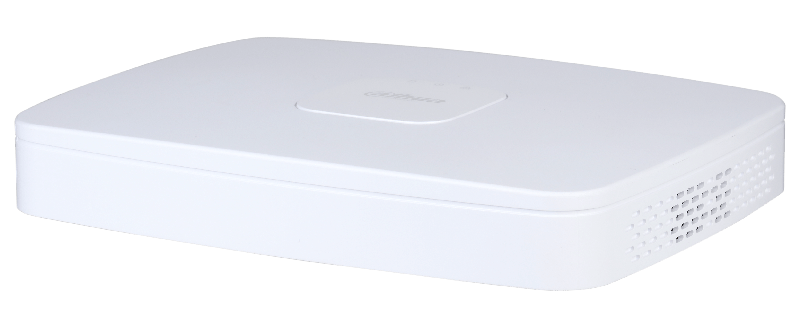

DH-XVR4108C-I
8-канальный HDCVI-видеорегистратор c SMD, HDCVI, AHD, TVI, IP, CVBS; отображение: до 1080p; запись: до 1080N@25к/с; H.265+; IP-каналы: до 10 каналов, до 6Мп; 1 SATA III до 6Тбайт
Производитель: Dahua Technology
- Код:
- 00040836
- Базовая единица
- шт
14 290 руб.
8 Channels Penta-brid 1080N/720p Smart 1U 1HDD WizSense Digital Video Recorder
- H.265+/H.265 dual-stream video compression
- Supports Full-channel AI-Coding
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 10 channels IP camera inputs, each channel up to 6MP; Max 32 Mbps incoming bandwidth
- Up to 8 channels video stream (analog channel) SMD Plus
Технические характеристики
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web; Local GUI |
| SMD Plus | |
| SMD Plus by Recorder | 8-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change |
| Audio and Video | |
| Analog Camera Input | 8 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured. |
| Camera Input |
1. CVI: 1080p@ 25/30 fps, 720p@25/30 fps 2. TVI: 1080p@ 25/30 fps, 720p@25/30 fps 3. AHD: 1080p@ 25/30 fps, 720p@25/30 fps 4. CVBS: PAL/NTSC |
| IP Camera Input |
Up to 10 channels of IPC access 2 IP channels by default + 8 channels (analog channels are converted to IP channels) incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps *After IP channels are added beyond the existing channels, the AI Function (SMD) will be disabled. |
| Encoding Capacity |
Main Stream: the 1st channel 1080N/720p(1 fps–25/30 fps), others 1080N/720p(1 fps–15fps); 960H/D1/CIF/(1fps–25/30 fps) Sub stream: CIF (1fps–7 fps) |
| Dual-stream | Yes |
| Video Bit Rate | 32 kbps–6144 kbps |
| Audio Sampling | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps |
| Video Output |
1 HDMI, 1 VGA HDMI/VGA : 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display |
When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16 |
| Third-party Camera Access | ONVIF; RTSP; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung |
| Compression Standard | |
| Video Compression | AI Coding; H.265+; H.265; H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
| Mobile Phone Access | iOS, Android |
| Interoperability | ONVIF 21.06; CGI Conformant |
| Browser |
Chrome IE9 or later Firefox |
| Network Mode | Single-address mode |
| Recording Playback | |
| Record Mode | General, motion detection, alarm |
| Recording Playback | 1/4/9 |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback |
| Alarm | |
| General Alarm | Motion detection, video loss, , tampering |
| Anomaly Alarm | No disk, disk error, low space, offline, ip conflict, MAC conflict |
| Alarm Linkage | Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email |
| Ports | |
| Audio Input |
1-channel RCA 8-channel BNC (Coaxial Audio) |
| Audio Output | 1-channel RCA |
| Two-way Talk | Yes (share the same audio input with the first channel) |
| HDD Interface | 1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature. |
| USB | 2 USB ports (USB 2.0) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | < 7W |
| Net Weight | 0.50 kg (1.10 lb) |
| Gross Weight | 1.07 kg (2.36 lb) |
| Product Dimensions | 204.6 mm × 210.9 mm × 45.6 mm (8.06'' × 8.30'' × 1.80'') (W × D × H) |
| Packaging Dimensions | 256.0 mm × 330.0 mm × 101.0 mm (10.08" × 12.99" × 3.98") (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 0%–90% (RH) |
| Installation | Desktop |
