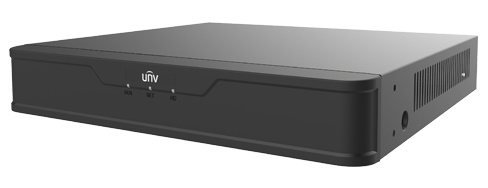

NVR501-04B-P4
Видеорегистратор IP 4-х канальный 4K с 4 PoE портами; Входящий поток на запись до 80Мбит/с; Поддерживаемые форматы сжатия: Ultra 265/H.265/H.264; Запись: разрешение до 4K; HDD; 1 SATA3 до 8Тб; Декодирование: 4 x 4K@30; Видеовыходы: 1 HDMI, 1 VGA; Сеть: 1 порт 100Mb, 4 порта PoE (EEE 802.3at, IEEE 802.3af); Аудио выход; USB: 1 порт USB2.0, 1 порт USB3.0; Поддержка ONVIF, SDK; Поддержка: iOS, Android; Металл; Питание: DC 48В
Производитель: Uniview
- Код:
- 00048841
- Базовая единица
- шт
24 890 руб.
- Support Ultra 265/H.265/H.264 video formats
- 4-channel input
- Plug & Play with 4 independent PoE network interfaces
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support HDMI and VGA simultaneous output
- Up to 8 Megapixels resolution recording
- 1 SATA HDDs, up to 8TB for each HDD
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Технические характеристики
| IP Video Input | 4-ch |
| Audio Input | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | 80Mbps |
| Outgoing Bandwidth | 64Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP |
| Browser |
IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
| Video/Audio Output | |
| HDMI/VGA Output |
HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60 |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Two-way Audio | 1-ch, RCA(Using the audio input and output) |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 4-ch |
| Liveview display | 1/4 |
| Corridor Mode Screen | 3/4 |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution |
| Decoding | |
| Decoding format | Ultra 265/H.265/H.264 |
| Live view/Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability |
Ultra 265/H.265: 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080p@30 H.264: 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080p@30 |
| Hard Disk | |
| SATA | 1 SATA interfaces |
| Capacity |
Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature) |
| Smart | |
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, SMD(Smart Motion Detection) |
| VCA Search | Behavior Search, People Counting Report |
| People counting | People Flow Counting, Crowd Density Monitoring |
| Smart Intrusion Prevention (SIP), SMD by Camera | Total 4-ch |
| General Alarm | |
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| External Interface | |
| Network Interface | 1 RJ-45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 |
| RS232 | NA |
| RS485 | NA |
| Alarm In | NA |
| Alarm Out | NA |
| PoE | |
| Interface | 4 RJ-45 10M/100M self-adaptive Ethernet Interface |
| Max Power |
Max 30W for single port Max 50W in total |
| Supported Standard | IEEE 802.3af/at |
| General | |
| Power Supply |
48V DC/1.35A Power Consumption: ≤ 10W (without HDD) |
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 260mm × 222mm × 47mm (10.2" × 8.7" × 1.8") |
| Weight (without HDD) | ≤ 0.98Kg (2.16lb) |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 |
| FCC | Part15 Subpart B, ANSI C63.4 |
