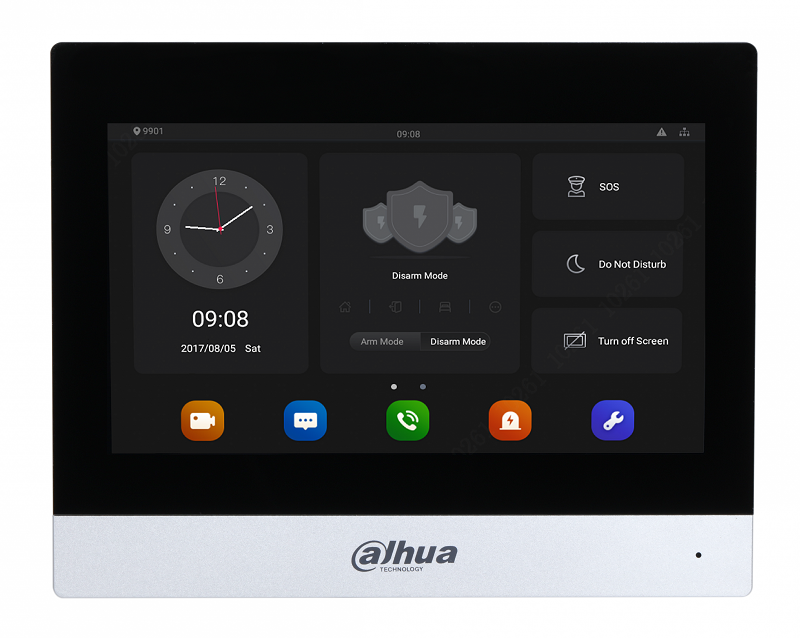

DHI-VTH8A21KMS-W
Монитор видеодомофона IP 7-и дюймовый с WiFi 2.4ГГц, серебрянный, 1024x600 разрешение, ёмкостной сенсорный экран; тревожные входы / выходы 6/1; LAN; поддержка micro-SD до 64Гб; Возможность просмотра IP видеокамер; DC 12-24В; 185х147х23мм; Установка - на стену.
Производитель: Dahua Technology
- Код:
- 00049811
- Базовая единица
- шт
30 490 руб.
Android IP & Wi-Fi Indoor Monitor
- Elegant all-screen design
- 7" capacitive touchscreen, 1024 × 600
- Built-in Android OS and flat UI design
- Used with the door station, master station and platform to form a intercom system
- House-to-house communication
- 6-channel alarm input and 1-channel alarm output
Технические характеристики
| System | |
| Main Processor | Embedded processor |
| Operating System | Android 8.1 |
| Network Protocol | IPv4; TCP; SIP; UDP; RTSP |
| Basic | |
| Screen Type | 7" full-color TFT |
| Resolution | 1024 (H) × 600 (V) |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1–ch omnidirectional microphone |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way voice call |
| Audio Bit Rate | 16 kHz, 16 bit |
| Function | |
| Communication Mode | Full digital |
| Information Release | Receive and view information released by the management center |
| DND Mode | Do not disturb period can be set. |
| Number of Extensions |
Villa: 9 Apartment: 4 Wi-Fi intercom: 1 main monitor, 2 extension monitors |
| Wi-Fi | Yes |
| Performance | |
| Casing | Alluminum+ ABS |
| Port | |
| Alarm Input | 6 |
| Alarm Output | 1 |
| Network Port | RJ-45 port, 10/150 Mbps self-adaptive |
| Alarm | |
| SOS | Yes |
| General | |
| Appearance Color | Silver |
| Power Supply | 12–24 VDC, 1 A; Standard PoE |
| Power Adapter | Not Standard |
| Installation | Surface |
| Accessory |
Surface mount bracket: Included Alarm ribbon cable: Included Power cord: Included RS-485 and power output ribbon cable: Included SD card: Optional (<64G) |
| Product Dimensions | 185 mm × 147 mm × 23.3 mm (7.28" × 5.79" × 0.92") |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Power Consumption | ≤ 1 W (standby), ≤ 6 W (working) |
| Gross Weight | 0.41 kg (0.90 lb) |
