DHI-VTS5A40B
Мастер-станция, OS Android 11, 10-дюймовый емкостный ЖК-дисплей, 1024×600, Микрофон на гибкой стойке, угол наклона кронштейна 0–45 °.
HDMI видеовыход с разрешением до 1024×600. Удалённое открытие дверей, пддерживает 4 канала 720P. Запись видел, снимкоа и сохранение информации на SD-картах. Возможность подключить к главной станции до 300 IP VTA. Предлагает двусторонняя аудиосвязь между станциями.
Производитель: Dahua Technology
- Код:
- 00049814
- Базовая единица
- шт
58 090 руб.

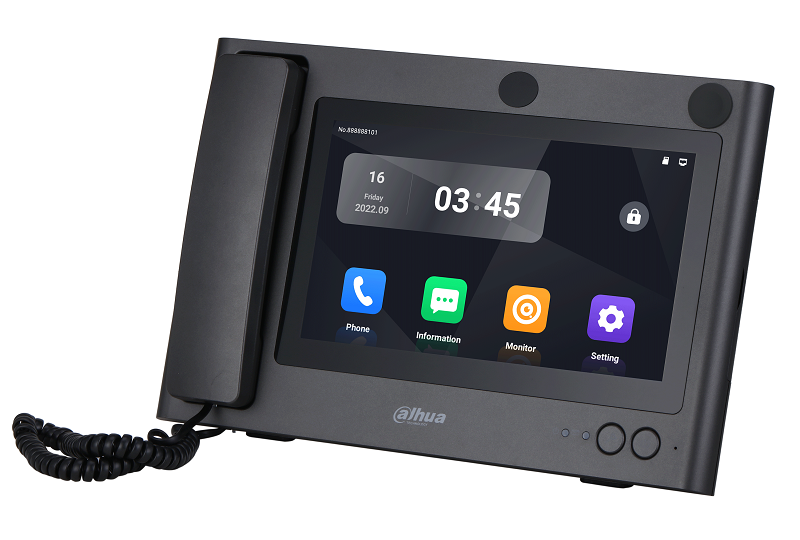

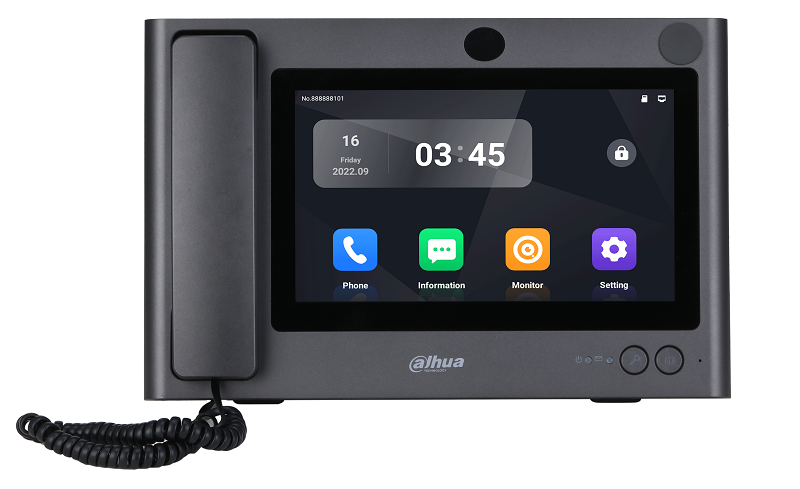

Master Station
- Highly convenient, it has a 10-inch glass touch screen with a 1024 (H) × 600 (V) resolution and supports speaker phone and handsets.
- Supports desk mount installation, and the bracket can be adjusted from 0°–45°.
- Offers HDMI output with a resolution up to 1024 (H) × 600 (V).
- The intercom can be set for residential areas and use in industries.
- Buidlings intercom: Doors can be remotely unlocked during monitoring and while the intercom is in use.
- Features two-way talk for indoor monitors and door stations.
- Monitors 4 channel door stations and IPCs at the same time.
- Records videos, takes snapshots and stores information on SD cards during monitoring and while the intercom is in use.
- Industry intercom: 300 IP VTAs can be connected to the master station.
- Supports two-way talk with emergency phone terminals and emergency phone terminal stations.
- Monitors 4 channel door stations and IPCs at the same time.
- Records videos, takes snapshots and stores information on SD cards while the emergency phone terminal and emergency terminal station are performing monitoring and using the intercom.
- Offers two-way talk between stations.
Технические характеристики
| System | |
| Main Processor | Embedded Processor |
| Operating System | Android 11 |
| Button Type | Mechanical |
| Interoperability | ONVIF; CGI; SDK; SIP |
| Network Protocol | IPv4; RTSP; UDP; FTP; RTP; TCP |
| Basic | |
| Screen Type | Capacitive Touchscreen |
| Display Screen | 10" TFT display |
| Screen Resolution | 1024 × 600 |
| Video Compression | H.264; H.265 |
| Video Resolution | 720p |
| Video Frame Rate | 25 fps |
| Video Bit Rate | 2 Mbps |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 2 Channels |
| Audio Output | Built-in speaker; handset speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bit Rate | 16 kHz, 16 Bit |
| Function | |
| Communication Mode | Full digital |
| Multi-Window Display | Supports splitting to 4 windows and monitoring 4-ch 720p videos. |
| Storage | Micro SD, Max 512 GB |
| Web Configuration | Yes |
| Auto Registration | Yes |
| Access Device |
Building mode: Up to 32 VTSs. Up to 32 IPCs. Industry mode: Up to 300 VTAs (Added through IP). Up to 32 IPCs. |
| Performance | |
| Casing Material | PC + ABS |
| Port | |
| RS-485 | 1 |
| HDMI | 1 |
| USB |
1 × USB 2.0 port 1 × USB 3.0 port |
| Power Output | 1 channel, 12 V/200 mA |
| Network Port | 1 × RJ-45 100 Mbps/1000 Mbps self-adaptive |
| General | |
| Appearance Color | Titanium gray |
| Power Supply | 12 VDC, 4A |
| Power Adapter | Included |
| Installation | Desk Mount |
| Certifications | CE; FCC |
| Accessory | Power adapter; power cord; handset cord |
| Product Dimensions | 345.00mm × 224.60 mm × 64.42 mm (13.58" × 8.84" × 2.54") |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Operating Humidity | 5%–90% (RH) (Non-condensing) |
| Operating Altitude | 0 m–1300 m (0 ft–4265.09 ft) |
| Power Consumption | ≤ 5 W (standby), ≤ 10 W (working) |
| Gross Weight | 2.5 kg (5.51 lb) |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Humidity | 30% to 75% (RH) |
