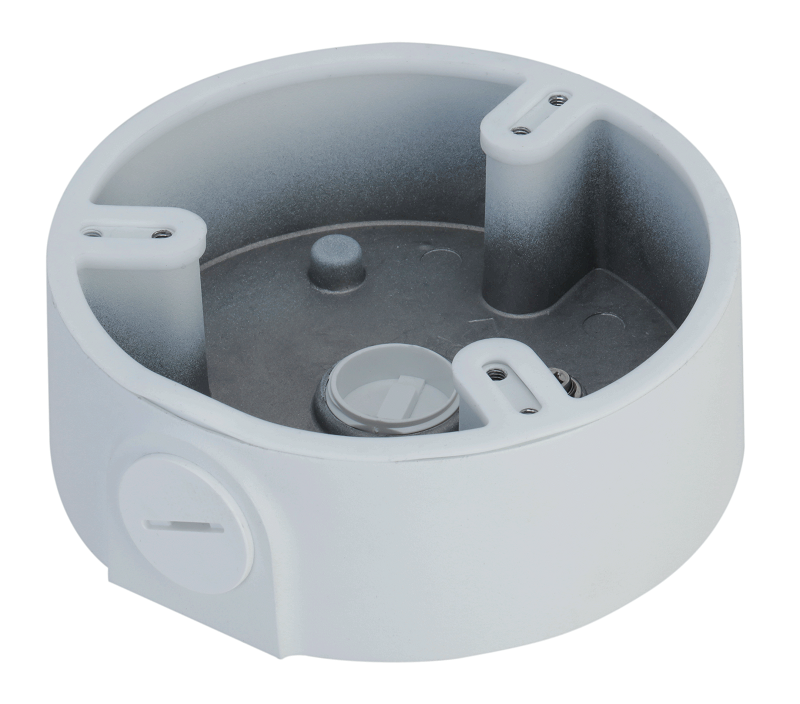

DH-PFA197R
Монтажная коробка Материал: алюминий; защита: влагозащита; применение: для купольных видеокамер (тип R); крепление: 3 винта
Производитель: Dahua Technology
- Код:
- 00052822
- Базовая единица
- шт
2 790 руб.
Junction Box
- Built of aluminum alloy and is cost-effective.
- Suitable for a variety of cameras and is elegant.
Технические характеристики
| Material | Aluminum alloy |
| Dimensions | Φ129.1 mm × 45.0 mm (Φ5.08" × 1.77") |
| Color | White |
| Net Weight | 0.4 kg (0.88 lb) |
| Gross Weight | 0.58 kg (1.27 lb) |
| Load Bearing | 3.0 kg (6.61 lb) |
| Installation | Junction box mount |
| Screw Thread Type | G 3/4 |
| Product Dimensions | 185.0 mm × 163.0 mm × 71.0 mm (7.28" × 6.42" × 2.8") (L × W × H) |
| Packaging Dimensions | 578.0 mm × 383.0 mm × 349.0 mm (22.76" × 15.08" × 13.74") (L × W × H) |
| Packaging Method | 30 pcs in each carton |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <90% (RH) |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | 10%–90% (RH) |
