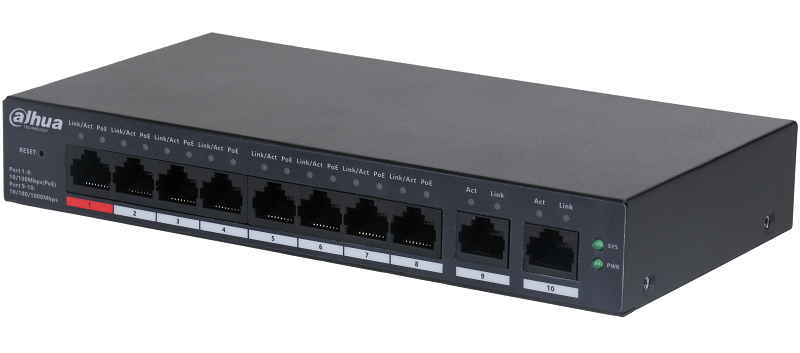

DH-CS4010-8ET-110
8-портовый PoE коммутатор с функцией облачного управления, Порты: 8 RJ45 10/100Мбит/с (PoE/PoE+/Hi-PoE), 2 RJ45 10/100/1000Мбит/с (uplink); мощность PoE: порт 1 до 90Вт, порты 2~8 до 30Вт, суммарно до 110Вт; PoE watchdog, передача до 250м; питание: 57В(DC)
Производитель: Dahua Technology
- Код:
- 00053595
- Базовая единица
- шт
10 890 руб.
8-портовый управляемый коммутатор с РоЕ Порты: 8 RJ45 10/100Мбит/с (PoE/PoE+/Hi-PoE), 2 RJ45 10/100/1000Мбит/с (uplink); мощность PoE: порт 1 до 90Вт, порты 2~8 до 30Вт, суммарно до 110Вт; PoE watchdog, передача до 250м; питание: 57В(DC)
- Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab standards
- Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards.
- Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE.
- A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.
Технические характеристики
| Общий бюджет PoE | 110 |
| Поддержка PoE | Да |
| Количество PoE портов | 8 |
| Коммутирующая способность, Гбит/с | 5,6 |
| Поддержка управления | Да |
| Исполнение | Стоечное |
| Количество портов | 8 |
| Количество портов Ethernet 10/100 | 8 |
| Количество портов Ethernet 10/100/1000(RJ45) | 2 |
| Hardware | |
| Included Power Adapter | Yes |
| PoE | Yes |
| Ethernet Port | 8 |
| Ethernet Port Speed | 10/100 Mbps |
| Ethernet Port Uplink Speed | 10/100/1000 Mbps |
| Description of Function Slots | Port 1-8: 8 × RJ-45 10/100 Mbps (PoE); Port 9-10: 2 × RJ-45 10/100/1000 Mbps（uplink） |
| Reset Button | 1 |
| Power Supply | External power supply: 54 VDC, 2.22 A |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 5%–95% (RH), non-condensing |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Power Consumption | Idling: ≤3 W; Full load: 110 W |
| Performance | |
| Layer | Layer 2 |
| Management Type | Yes |
| Smart Managed Switch | Yes |
| MTBF | 150 years |
| Switching Capacity | 5.6 Gbps |
| Packet Forwarding Rate | 4.17 Mpps |
| Packet Buffer Size | 4 Mbit |
| Jumbo Frame | 9216 Byte |
| MAC Table Size | 8K |
| VLAN Number | 32 |
| Communication Standard | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab |
| Feature | |
| PoE Protocol | IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt |
| PoE Power | Port 1 ≤ 90 W, Port 2-8 ≤ 30 W, total ≤ 110 W |
| PoE Power Consumption Management | Yes |
| PoE Pin Assignment | 1,2,4,5（V+）,3,6,7,8（V-） |
| Long Distance PoE Transmission | Yes |
| VLAN Function | Port-based VLAN |
| IEEE 802.3x Flow Control | Yes |
| DHCP Function | DHCP Client |
| Equipment Management | Web management; App management |
| General | |
| Statics Protection | Air discharge: 8 kV; Contact discharge: 6 kV |
| Lighting Protection | Common mode: 4 kV; Differential mode: 2 kV |
| Net Weight | 0.5 kg (1.10 lb) |
| Gross Weight | 1.25 kg (2.76 lb) |
| Product Dimensions | 190 mm × 106 mm × 30 mm (7.48" × 4.17" × 1.18") (L × W × H) |
| Packaging Dimensions | 256 mm × 244 mm × 87 mm (10.07" × 9.61" × 3.43") (L × W × H) |
| Casing Material | Sheet metal |
| Installation | Desktop mount; wall mount |
| Certifications | CE |
