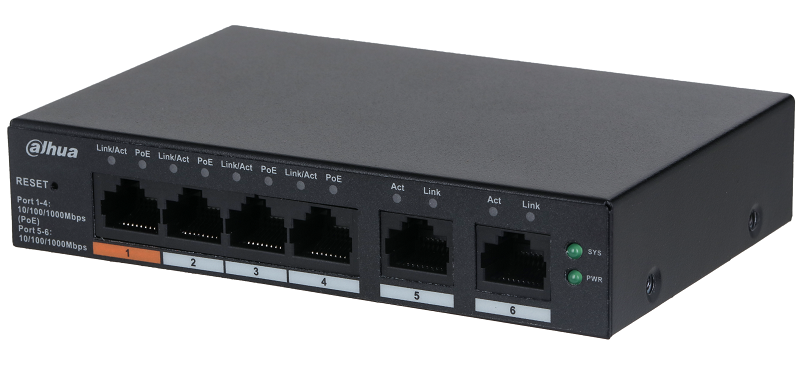

DH-CS4006-4GT-60
4-портовый гигабитный PoE коммутатор с функцией облачного управления, Порты: 4 RJ45 10/100/1000Мбит/с (PoE/PoE+/Hi-PoE), 2 RJ45 10/100/1000Мбит/с (uplink); мощность PoE: порт 1 до 60Вт, порты 2~4 до 30Вт, суммарно до 60Вт; PoE watchdog, передача до 250м; питание: 53В(DC)
Производитель: Dahua Technology
- Код:
- 00053602
- Базовая единица
- шт
9 290 руб.
4-портовый настольный гигабитный коммутатор с облачным управлением и PoE
- Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab standards.
- Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE power supply standards.
- Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE.
- A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.
Технические характеристики
| Hardware | |
| Included Power Adapter | Yes |
| PoE | Yes |
| Ethernet Port | 4 |
| Ethernet Port Speed | 10/100/1000 Mbps |
| Ethernet Port Uplink Speed | 10/100/1000 Mbps |
| Description of Function Slots | Port 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE); Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink) |
| Reset Button | 1 |
| Power Supply | External power supply: 53 VDC, 1.226 A |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 5%–95% (RH), non-condensing |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Power Consumption | Idling: ≤2.5 W ; Full load: 65 W |
| Performance | |
| Layer | Layer 2 |
| Management Type | Yes |
| Smart Managed Switch | Yes |
| MTBF | 222.36 years |
| Switching Capacity | 12 Gbps |
| Packet Forwarding Rate | 8.93 Mpps |
| Packet Buffer Size | 4 Mbit |
| Jumbo Frame | 15K Byte |
| MAC Table Size | 8K |
| VLAN Number | 32 |
| Communication Standard | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab |
| Feature | |
| PoE Protocol | IEEE802.3af; IEEE802.3at; Hi-PoE |
| PoE Power | Port 1 ≤ 60 W, Port 2-4 ≤ 30 W, total ≤ 60 W |
| PoE Power Consumption Management | Yes |
| PoE Pin Assignment | 1,2,4,5（V+）,3,6,7,8（V-） |
| Long Distance PoE Transmission | Yes |
| Spanning Tree Protocol | STP/RSTP |
| VLAN Function | Port-based VLAN |
| IEEE 802.3x Flow Control | Yes |
| DHCP Function | DHCP Client |
| Equipment Management | Web management; App management |
| General | |
| Statics Protection | Air discharge: 8 kV; Contact discharge: 6 kV |
| Lighting Protection | Common mode: 4 kV; Differential mode: 2 kV |
| Net Weight | 0.29 kg (0.64 lb) |
| Gross Weight | 0.94 kg (2.07 lb) |
| Product Dimensions | 130 mm × 90 mm × 26 mm (5.11" × 3.54" × 1.02") (L × W × H) |
| Packaging Dimensions | 265 mm × 238 mm × 76 mm (10.43" × 9.37" × 2.99") (L × W × H) |
| Casing Material | Sheet metal |
| Installation | Desktop mount; wall mount |
