DH-SD2A200HB-GN-AW-PV-S2
Мини-PT IP-видеокамера с Wi-Fi 2Мп; 1/2.8” CMOS; объектив 4мм; механический ИК-фильтр; чувствительность 0.05лк@F2.0; сжатие: H.265+, H.265, H.264+, H.264, MJPEG; 2 потока до 2Мп@25к/с; видеоаналитика: обнаружение людей, пересечение линии, охрана периметра; ИК-подсветка 30м, Led-подсветка 30м; встроенные микрофон+динамик; MicroSD до 512Гбайт; защита: IP66, питание: 12В(DC);PoE; Wi-Fi 2.4ГГц
Производитель: Dahua Technology
- Код:
- 00053911
- Базовая единица
- шт
11 590 руб.

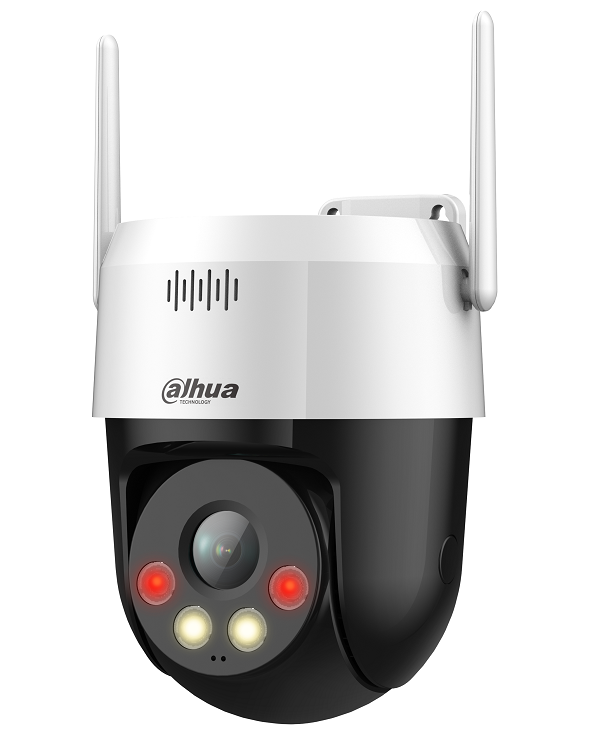

2MP Full-color Network PT Camera
- 1/2.8" 2Megapixel CMOS.
- Max. 25/30 fps@1080p.
- Human detection.
- Tripwire, intrusion.
- H.265 encoding.
- Wi-Fi.
- Two-way talk.
- Sound and light alarm.
- IR and white light, three night view modes.
- IP66.
Технические характеристики:
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Pixel | 2 MP |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 128 MB |
| RAM | 128 MB |
| Electronic Shutter Speed | 1/3 s–1/100,000 s |
| Scanning System | Progressive |
| Min. Illumination |
Color: 0.05 lux@F2.0 B/W: 0.005 lux@F2.0 0 lux (IR/white light on) |
| Illumination Distance |
30 m (98.42 ft) (IR) 30 m (98.42 ft) (white light) |
| Illuminator On/Off Control | Manual; auto; off |
| Illuminator Number |
2 (IR light) 2 (White light) |
| Lens | |
| Focal Length | 4.0 mm |
| Max. Aperture | F2.0 |
| Field of View |
H: 86.8° V: 47.1° D: 102.2° |
| Close Focus Distance | 0.6 m (1.97 ft) |
| Iris Control | Fixed |
|
DORI Distance Detect Observe Recognize Identify |
53.6 m (175.85 ft) 21.4 m (70.21 ft) 10.7 m (35.10 ft) 5.4 m (17.72 ft) |
| PTZ | |
| Pan/Tilt Range |
Pan: 0° –345° Tilt: 0° –80° |
| Manual Control Speed |
Pan: 0.1°–74°/s Tilt: 0.1°–36.4°/s |
| Preset Speed |
Pan: 62°/s Tilt: 36.3°/s |
| Preset | 300 |
| Power-off Memory | Yes |
| Idle Motion | Preset |
| Smart Event | |
| IVS | Tripwire; intrusion |
| Human Detection | Yes |
| Active Deterrence | |
| Light Warning | White light warning Flash duration: 5 s–30 s Flash frequency: high, medium, low |
| Sound Warning | Sound warning alarm: Customizable Alarm duration: 10 s, 20 s, 30 s |
| Video | |
| Video Compression | H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+ |
| Streaming Capability | 2 streams |
| Resolution | 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Video Frame Rate |
Main stream: 1080p/1.3M/720p (1–25/30 fps) Sub stream: D1/CIF (1–25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate |
H264: 256–8192 kbps H265: 144–5632 kpbs |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes |
| White Balance | Auto; manual; tracking; indoor; outdoor; sodium lamp; street lamp; natural light |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Image Rotation | 180° |
| S/N Ratio | ≥ 55 dB |
| Audio | |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1 |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | Yes |
| Wi-Fi–Wireless Standard | 802.11n; IEEE802.11b; 802.11g |
| Wi-Fi–Wireless Frequency Range | 2.4 GHz |
| Wi-Fi–Wireless Transmission Rate | 150 Mbps |
| Network Protocol | UDP; FTP; RTMP; IPv6; IPv4; IP Filter; DNS; RTCP; HTTP; NTP; SSL; DHCP; RTP; SMTP; HTTPS; TCP/IP; RTSP; DDNS; ARP |
| Interoperability | CGI; SDK; ONVIF (Profile S&T); P2P |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 |
| Storage | Micro SD card (512 GB); FTP |
| Browser | IE: IE 7 and later versions; Chrome; Firefox; Safari |
| Management Software | DMSS |
| Mobile Client | iOS; Android |
| Certification | |
| Certifications |
CE:EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000-3-2/EN55024/EN55035/EN62368-1 FCC:47 CFR FCC Part15, Subpart B, ANSI C63.4:2014 |
| Port | |
| Audio Input | 1 channel (built-in mic) |
| Audio Output | 1 channel (built-in speaker) |
| Two-way Audio | Yes |
| Alarm Linkage | Capture; preset; recording; audio; sending email |
| Alarm Event | Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Audio I/O | 1/1 |
| Power | |
| Power Supply | 12 VDC/1.5 A±10% |
| Power Consumption |
Basic: 3.5 W Max.: 11 W (illuminator + PT + speaker + heating glass) |
| Environment | |
| Operating Temperature | –30 °C to +55 °C (–22 °F to +131 °F) |
| Operating Humidity | ≤ 95% |
| Protection | IP66, TVS 2000 V lightning proof; surge protection; voltage transient protection |
| Structure | |
| Product Dimensions | 140.5 mm × Φ111.0 mm (5.53" × Φ4.45") |
| Net Weight | 0.5 kg (1.10 lb) |
| Gross Weight | 1 kg (2.20 lb) |
| The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model. | |
