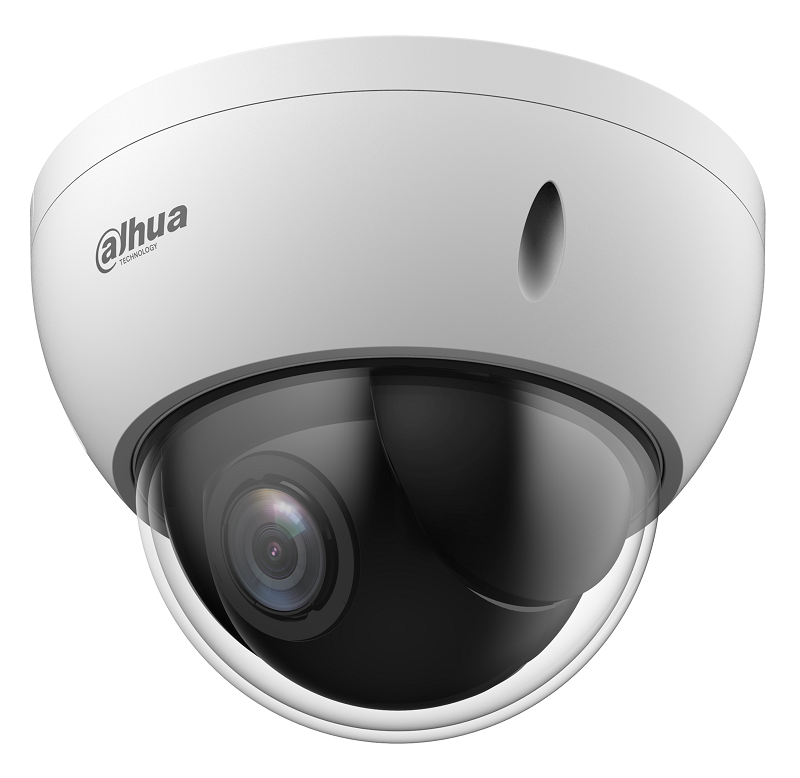

DH-SD22204DB-GNY
Уличная мини-PTZ IP-видеокамера 2Мп; 1/2.8” CMOS; 4x моторизованный объектив 2.8~12мм ; механический ИК-фильтр; WDR(120дБ); чувствительность 0.005лк@F1.6(цвет); сжатие: H.265+, H.265, H.264+, H.264, MJPEG; 3 потока до 2Мп@25к/с; видеоаналитика: охрана периметра, SMD 3.0 (интеллектуальный детектор движения), детектор лиц; MicroSD до 512Гбайт; защита: IP66, IK10; питание: 12В(DC), PoE; корпус: металл
Производитель: Dahua Technology
- Код:
- 00053913
- Базовая единица
- шт
29 690 руб.
2MP 4x Starlight WizSense Network PTZ Camera
- 1/2.8" CMOS.
- Powerful 4x optical zoom.
- Max. 25/30fps@1080P.
- Max 100°/s pan speed.
- Supports face detection.
- Support PoE.
- IP66, IK10.
- SMD 3.0.
- 6000V lightning-proof.
Технические характеристики:
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Pixel | 2 MP |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Electronic Shutter Speed | 1/1 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination |
Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 |
| Lens | |
| Focal Length | 2.8 mm–12 mm |
| Max. Aperture | F1.6–F3.0 |
| Field of View | H: 99.1°–31.9°; V: 53.4°–18.0°; D: 117.7°–36.6° |
| Optical Zoom | 4× |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 1.5 m (4.92 ft) |
| Iris Control | Fixed |
|
DORI Distance Detect Observe Recognize Identify |
165.5 m (542.98 ft) 65.4 m (214.57 ft) 33.1 m (108.60 ft) 16.6 m (54.46 ft) |
| PTZ | |
| Pan/Tilt Range |
Pan: 0° to 355° Tilt: 0° to +90° |
| Manual Control Speed |
Pan: 0.1°/s–100°/s Tilt: 0.1°/s–60°/s |
| Preset Speed | Pan: 100°/s; Tilt: 60°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Idle Motion | Pattern; Preset; Tour |
| PTZ Protocol | SD Pelco-P/D(Auto recognition) |
| Intelligence | |
| IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification |
| Face Detection |
Supports face detection, face track, snapshot, and face enhancement; Supports face cutout: Face, one-inch photo; Capturing strategies include real-time capturing and quality first. |
| SMD | Yes |
| Video | |
| Video Compression | H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG(Sub Stream); Smart H.264+ |
| Streaming Capability | 3 streams |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288); VGA (640 × 480) |
| Video Frame Rate | Main stream: 1080p/1.3M/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate |
H.264: 2048 kbps–8192 kbps H.265: 768 kbps–6400 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes |
| White Balance | Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Yes |
| Defog | Electronic defog |
| Digital Zoom | 16× |
| Image Rotation | 180° |
| S/N Ratio | ≥ 55 dB |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SAMBA; NFS |
| Interoperability | ONVIF(Profile S&G&T); P2P; CGI; SDK |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | FTP; Micro SD card (512 GB); NAS |
| Browser |
IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions iOS 10 and later versions. |
| Management Software | DMSS; DSS Pro |
| Mobile Client | iOS; Android |
| Certification | |
| Certifications |
CE: CE-LVD: IEC 62368-1/ CE-EMC/EN 55032/EN IEC 61000-3-2/EN55024/EN55035/EN50130-4 FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014 |
| Port | |
| Alarm Linkage | Capture; preset; tour; pattern; recordings on SD card; alarm digital input; send email |
| Alarm Event | Motion/Tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection |
| Power | |
| Power Supply |
12 VDC, 1 A ± 10% POE (802.3af) |
| Power Consumption |
Basic: 2.3 W Max.: 6.1 W |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤ 95% |
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Storage Humidity | ≤ 95% |
| Protection | IP66, IK10 |
| Structure | |
| Product Dimensions | 89 mm × Φ122 mm (3.50" × Φ4.80") |
| Net Weight | 0.5 kg (1.10 lb) |
| Gross Weight | 0.7 kg (1.54 lb) |
| The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model. | |
