DH-SD2A500HB-GN-AW-PV-S2
Мини-PT IP-видеокамера с Wi-Fi 5Мп; 1/2.8” CMOS; объектив 4мм; механический ИК-фильтр; чувствительность 0.005лк@F1.6; сжатие: H.265+, H.265, H.264+, H.264, MJPEG; 2 потока до 5Мп@20к/с; видеоаналитика: обнаружение людей, пересечение линии, вторжение; ИК-подсветка 30м, Led-подсветка 30м; встроенный микрофон+динамик; MicroSD до 512Гбайт; защита: IP66, питание: 12В(DC);PoE; Wi-Fi 2.4ГГц
Производитель: Dahua Technology
- Код:
- 00053915
- Базовая единица
- шт
12 990 руб.

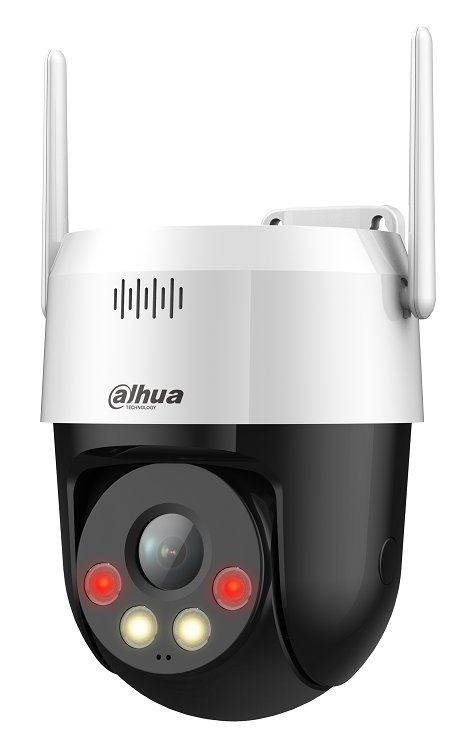

5MP Full-color Network PT Camera
- 1/2.8" 5Megapixel STARVIS™ CMOS.
- Max. 20 fps@5MP.
- Human detection.
- Tripwire, intrusion.
- H.265 encoding.
- Wi-Fi.
- Two-way audio.
- Sound and light alarm.
- IR and white light, three night view modes.
- IP66.
Технические характеристики:
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Pixel | 5 MP |
| Max. Resolution | 2560 (H) × 1920 (V) |
| ROM | 128 MB |
| RAM | 128 MB |
| Electronic Shutter Speed | 1/3 s–1/100,000 s |
| Scanning System | Progressive |
| Min. Illumination |
Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (illuminator on) |
| Illumination Distance | 30 m (98.42 ft) (IR) 30 m (98.42 ft) (white light) |
| Illuminator On/Off Control | Manual; auto; off |
| Illuminator Number |
2 (IR light) 2 (White light) |
| Lens | |
| Focal Length | 4.0 mm |
| Max. Aperture | F1.6 |
| Field of View |
H: 80.4° V: 58.1° D: 104.8° |
| Close Focus Distance | 0.3 m (0.98 ft) |
| Iris Control | Fixed |
|
DORI Distance Detect Observe Recognize Identify |
77.4 m (253.94 ft) 31.0 m (101.71 ft) 15.5 m (50.85 ft) 7.74 m (25.39 ft) |
| PTZ | |
| Pan/Tilt Range |
Pan: 0° to 345° Tilt: 0° to +80° |
| Manual Control Speed |
Pan: 0.1°–74°/s Tilt: 0.1°–36.4°/s |
| Preset Speed |
Pan: 62°/s Tilt: 36.3°/s |
| Preset | 300.0 |
| Power-off Memory | Yes |
| Idle Motion | Preset |
| Smart Event | |
| IVS | Tripwire; intrusion |
| Human Detection | Yes |
| Active Deterrence | |
| Light Warning | White light warning Flash duration: 5 s–30 s Flash frequency: high, medium, low |
| Sound Warning | Sound warning alarm: Customizable Alarm duration: 10 s, 20 s, 30 s |
| Video | |
| Video Compression | H.264B;Smart H.265+;H.264;H.265;MJPEG(Sub Stream);Smart H.264+ |
| Streaming Capability | 2 streams |
| Resolution | 5M (2560 × 1920); 4M (2560 × 1440); 1080P (1920 × 1080); 960P(1280x960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Video Frame Rate |
Main stream: 5M(1–20 fps),4M/1080p/1.3M/720p (1–25/30 fps) Sub stream: D1/CIF (1–25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate |
H264: 512–8192 kbps H265: 233–7680 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes |
| White Balance | Auto; manual; tracking; indoor; outdoor; sodium lamp; street lamp; natural light |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Image Rotation | 180° |
| S/N Ratio | ≥ 55 dB |
| Audio | |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1 |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | Yes |
| Wi-Fi–Wireless Standard | 802.11n;IEEE802.11b;802.11g |
| Wi-Fi–Wireless Frequency Range | 2.4GHz |
| Wi-Fi–Wireless Transmission Rate | 150Mbps |
| Network Protocol | UDP;FTP;RTMP;IPv6;IPv4;IP Filter;DNS;RTCP;HTTP;NTP;SSL;DHCP;RTP;SMTP;HTTPS;TCP/IP;RTSP;DDNS;ARP |
| Interoperability | RTMP;CGI;SDK;ONVIF (Profile S&T);P2P |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 |
| Storage | Micro SD card (support max. 512 GB); FTP |
| Browser | IE: IE 7 and later versions; Chrome; Firefox; Safari |
| Management Software | Player;Smart Player ;Imou;DMSS;ConfigTool;NVR;Smart PSS |
| Mobile Client | iOS; Android |
| Certification | |
| Certification |
CE: EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000-3-2/EN55024/EN55035/EN62368-1 FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014 |
| Port | |
| Audio Input | 1 channel (built-in mic) |
| Audio Output | 1 channel (built-in speaker) |
| Two-way Audio | Yes |
| Alarm Linkage | Capture; preset; recording; audio; sending email |
| Alarm Event | Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Audio I/O | 1/1 |
| Power | |
| Power Supply | 12 VDC/1.5 A±10% |
| Power Consumption |
Basic: 3.5 W Max.: 11 W (illuminator) |
| Environment | |
| Operating Temperature | –30 °C to +55 °C (–22 °F to +131 °F) |
| Operating Humidity | ≤ 95% |
| Protection | IP66, TVS 2000 V lightning proof; surge protection; voltage transient protection |
| Structure | |
| Product Dimensions | 140.5 mm × Φ111.0 mm (5.53" × Φ4.45") |
| Net Weight | 0.5 kg (1.10 lb) |
| Gross Weight | 1 kg (2.20 lb) |
