DH-SD4E225GB-HNR-A-PV1
Уличная купольная PTZ IP-видеокамера с активным сдерживанием и ИИ 2Мп; 1/2.8” CMOS; 25x моторизованный объектив 4.8~120мм (25x); механический ИК-фильтр; WDR(120дБ); чувствительность 0.005лк@F1.6; сжатие: H.265+, H.265, H.264+, H.264, MJPEG; 3 потока до 2Мп@50к/с; видеоаналитика: автоматическое слежение, охрана периметра, SMD 4.0 (интеллектуальный детектор движения), детектор лиц; ИК-подсветка 100м, Led-подсветка 50м; сигнализация красно-синей подсветкой; тревожные вх/вых: 2/1; аудиовх/вых: 1/1, динамик; MicroSD до 512Гбайт; защита: IP66, питание: 12В(DC);PoE+
Производитель: Dahua Technology
- Код:
- 00053929
- Базовая единица
- шт
62 190 руб.

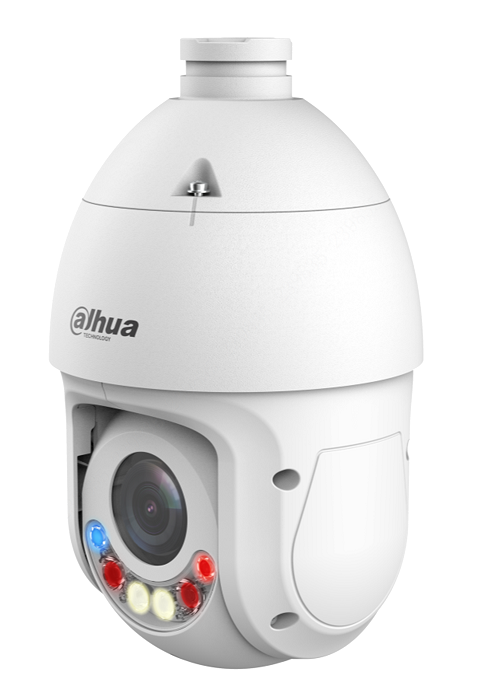

2MP 25X TiOC WizSense Network PTZ Camera
- 1/2.8" 2Megapixel STARVIS™ CMOS.
- 25x optical zoom.
- Starlight technology.
- Max.50/60fps@2M.
- IR distance up to 100 m.
- Auto tracking 3.0.
- Perimeter protection.
- Face detection.
- SMD 4.0.
- IP66.
- Full-color illuminator; red and blue warning light.
Технические характеристики:
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Pixel | 2 MP |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Electronic Shutter Speed | 1 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination |
0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on) |
| Illumination Distance |
100 m (328.08 ft) (IR); 50 m (164.04 ft) (White light) |
| Illuminator On/Off Control | Zoom Prio; Manual; Auto; Off |
| Illuminator Number | 2 (IR); 2 (Dual light fusion) |
| Lens | |
| Focal Length | 4.8 mm–120 mm |
| Max. Aperture | F1.6-F3.5 |
| Field of View | H: 58.5°–2.8°; V: 33.2°–1.5°; D: 67.5°–3.2° |
| Optical Zoom | 25× |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 0.1 m-1.5 m (0.33 ft–4.92 ft) |
| Iris Control | Auto; manual |
|
DORI Distance Detect Observe Recognize Identify |
1655 m (5429.79 ft) 654 m (2145.67 ft) 331 m (1085.96 ft) 165 m (541.34 ft) |
| PTZ | |
| Pan/Tilt Range |
Pan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180° |
| Manual Control Speed |
Pan: 0.1°/s–200°/s; Tilt: 0.1°/s–120°/s |
| Preset Speed |
Pan: 0.1°/s–240°/s; Tilt: 0.1°/s–200°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Pattern; Preset; Scan; Tour |
| Intelligence | |
| IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; linkage tracking |
| Face Detection | Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots. |
| Auto Tracking | Yes |
| SMD | SMD4.0 |
| Acupick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Auto Patrol | It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets. |
| Active Deterrence | |
| Light Warning |
Red-blue light warning Flash duration: 5 s–30 s Flash frequency: high, medium, low |
| Sound Warning | Offers 11 types of sound alarms, and supports importing custom sound alarms. |
| Video | |
| Video Compression | H.264H; H.264B; Smart H.265+; H.265; MJPEG (Sub Stream); Smart H.264+; H.264M |
| Streaming Capability | 3 streams |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Video Frame Rate |
Main stream: 1080p/1.3M/720p@(1-50/60 fps) Sub stream 1: D1/VGA/CIF@(1-25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1-25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate |
H264: 64 Kbps–10,496 Kbps H265: 25 Kbps–6,400 Kbps |
| Day/Night | Auto (ICR); Color; B/W |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes |
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Digital Zoom | 16× |
| Image Rotation | 180° |
| Privacy Masking |
Up to 24 areas can be set, with up to 8 areas in the same view; Multiple colors available |
| S/N Ratio | ≥ 55 dB |
| Audio | |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Network Protocol | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP |
| Interoperability | CGI; SDK; ONVIF (Profile S&G&T); P2P |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Browser |
IE 9 and later versions; Chrome 41 and later versions; Firefox 50 and later versions; Safari 10 and later versions |
| Management Software | DMSS; DSS Pro |
| Mobile Client | iOS; Android |
| Certification | |
| Certifications |
CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 |
| Port | |
| Audio Input | 1 channel (LINE IN, bare wire) |
| Audio Output | 1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive)) |
| Alarm Input | 2 (on-off value input: 0–5 VDC) |
| Alarm Output | 1 channel |
| Alarm Linkage | Capture; recording; send email; preset; tour; pattern; alarm digital output; audio; warning light |
| Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Power | |
| Power Supply |
12 VDC, 3 A ± 10%; PoE+ (802.3at) |
| Power Consumption |
12 VDC: Basic: 7 W; Max: 15 W (white light + heated glass + PTZ on + alarm + red and blue light flashing) POE: Basic: 9 W; Max: 16 W (white light + heated glass + PTZ on + alarm + red and blue light flashing) |
| Environment | |
| Operating Temperature | –40 °C to +65 °C (–40 °F to +149 °F) |
| Operating Humidity | ≤ 95% |
| Protection | TVS 6000 V lightning proof; IP66; surge protection; voltage transient protection |
| Structure | |
| Product Dimensions | 269.9 mm × Φ160.0 mm (10.63" × Φ6.30") |
| Net Weight | 2.6 kg (5.73 lb) |
| Gross Weight | 4 kg (8.82 lb) |
