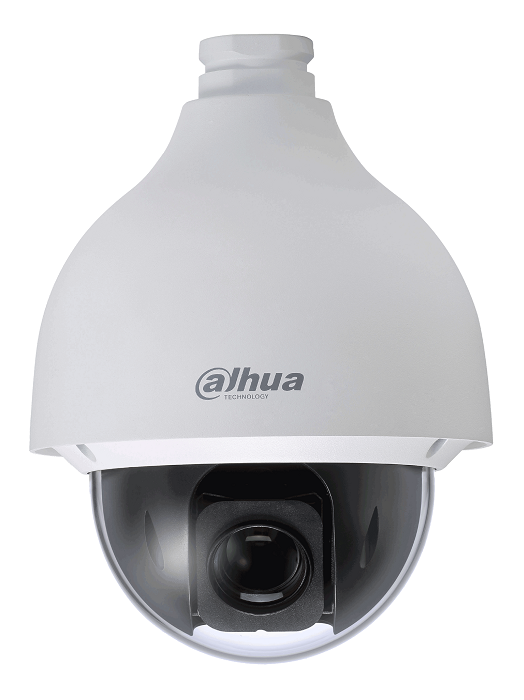

DH-SD50232GB-HNR
Уличная купольная PTZ IP-видеокамера Starlight с ИИ 2Mп; 1/2.8” CMOS; 32x моторизованный объектив 4.5~144мм (32x); механический ИК-фильтр; WDR(120дБ); чувствительность 0.005лк(цвет)@F1.6; сжатие: H.265+, H.265, H.264+, H.264, MJPEG; 3 потока до 2Мп@50к/с; видеоаналитика: автоматическое слежение, охрана периметра, SMD 4.0 (интеллектуальный детектор движения), детектор лиц; тревожные вх/вых: 2/1; аудиовх/вых: 1/1; MicroSD до 256Гбайт; защита: IP67, IK10, грозозащита 6кВ; питание: 24В(AC), PoE+
Производитель: Dahua Technology
- Код:
- 00053931
- Базовая единица
- шт
108 790 руб.
2MP 32x Starlight WizSense Network PTZ Camera
- 1/2.8" 2Megapixel STARVIS™ CMOS.
- 32× optical zoom.
- Starlight technology.
- Max.50/60fps@2M.
- Auto-tracking 3.0.
- Perimeter protection.
- Face detection.
- SMD4.0.
- IP67.
- IK10.
Технические характеристики:
| Camera | |
| Image Sensor | 1/2.8" STARVIS™ CMOS |
| Pixel | 2 MP |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Electronic Shutter Speed | 1/1–1/30000 s |
| Scanning System | Progressive |
| Min. Illumination |
Color: 0.005Lux@F1.6 B/W: 0.0005Lux@F1.6 |
| Lens | |
| Focal Length | 4.5 mm–144 mm |
| Max. Aperture | F1.6–F4.0 |
| Field of View | H: 58.4°–3.0°; V: 33.4°–1.7°; D: 66.4°–3.4° |
| Optical Zoom | 32× |
| Focus Control | Auto; Semi-auto; manual |
| Close Focus Distance | 0.1 m–1.5 m ( 0.33 ft–4.92 ft) |
| Iris Control | Auto; manual |
|
DORI Distance Detect Observe Recognize Identify |
1,986 m (6,915.75 ft) 785 m (2,575.46 ft) 398 m (1,305.77 ft) 198 m (649.61 ft) |
| PTZ | |
| Pan/Tilt Range |
Tilt: 0° to +90°, auto flip 180 Pan: 0° to 360° endless |
| Manual Control Speed | Pan: 0.1°/s–350°/s; Tilt: 0.1°/s–250°/s |
| Preset Speed | Pan: 500°/s; Tilt: 500°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Pattern; Preset; Scan; Tour |
| PTZ Protocol | DH-SD |
| Intelligence | |
| Video Metadata | Detects motor and non-motor vehicles, faces and human bodies. It also performs tracking, takes snapshots, uploads high-quality face images and optimizes images. It extracts attributes from motor vehicles, detecting up to 10 attributes for them. |
| IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking |
| Face Detection | Supports face detection, optimization, tracking, capturing pictures, uploading high-quality face snapshots, and face enhancement; Supports attributes extraction. 6 attributes and 8 expressions: Gender, age, glasses, expressions (angry, sad, hate, scary, surprise, calm, happy and confused), mask, mustache; Supports face cutout: Face, one-inch photo. Capturing strategies include real-time capturing, optimization, and quality first |
| People Counting | Supports tripwire for people counting at entrances and exits, counting the number of people staying in an area and queuing in an area, and displaying and exporting reports based on the day, week and month. |
| Auto Tracking | Yes |
| SMD | SMD 4.0 |
| Acupick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Auto Patrol | It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets. |
| Video | |
| Video Compression | H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream1); Smart H.264+ |
| Streaming Capability | 3 streams |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Video Frame Rate |
Main stream: 1080p/1.3M/720p@(1-50/60 fps) Sub stream 1: D1/VGA/CIF@(1-25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1-25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.265/H.264: 3 kbps–20480 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes |
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D; 3D |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Defog | Yes |
| Digital Zoom | 16 × |
| Image Rotation | 180° |
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view |
| S/N Ratio | ≥ 55 dB |
| Audio | |
| Audio Compression | G.711a; G.711Mu; G.722.1; G.726; MPEG2-Layer2; G.729; G.723; PCM |
| Network | |
| Network Port | RJ-45 (10/100Base-T) |
| Network Protocol | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP |
| Interoperability | CGI; SDK; ONVIF (Profile S&G&T); P2P |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Browser |
IE 9 and later versions Chrome 42 and later versions Firefox 50 and later versions Safari 10 and later versions |
| Management Software | DSS Pro; DMSS |
| Mobile Client | iOS; Android |
| Certification | |
| Certifications |
CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL62368-1+CAN/CSA C22.2, No. 62368-1 |
| Port | |
| Audio Input | 1 channel (LINE IN, bare wire) |
| Audio Output | 1 channel (LINE OUT,bare wire) |
| Alarm Linkage | Capture; preset; tour; pattern; recording; alarm digital input; audio; send email |
| Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Alarm I/O | 2/1 |
| Audio I/O | 1/1 |
| Power | |
| Power Supply |
24 VDC/2.5 A ± 25% (Included) PoE+ (802.3at) |
| Power Consumption |
Basic: 12.8 W Max: 16 W |
| Environment | |
| Operating Temperature | –40°C to +60°C (–40°F to +140°F) |
| Operating Humidity | ≤ 95% (RH) |
| Protection | IP67; IK10; 6000V lightning proof; surge protection; voltage transient protection |
| Structure | |
| Product Dimensions | Φ186 mm × 253 mm (Φ7.32" × 9.96") |
| Net Weight | 2.5 kg (5.51 lb) |
| Gross Weight | 4.5 kg (9.92 lb) |
| When the vertical field of view is between 0° and 7°, the image might present different degrees of ghosting. | |
