DHI-TPC-DF1241-TB7F8-DW-S8
Двухспектральная тепловизионная IP-камера с Искуственным Интеллектом, Тепловое излучение: неохлаждаемый FPA детектор 256x192; объектив 7мм; область обзора 24°×18°; обнаружение транспорт/человек: 778/292м, распознавание транспорт/человек: 194/75м, идентификация транспорт/человек: 97/38м; Видимый свет: 1/2.7"" Progressive CMOS; объектив 8мм; область обзора 33.4°×25°; механический ИК-фильтр; 0.05лк, F2.0; 2336×1752@25к/с, ИК до 30м., Сжатие H.265/H.264/MJPEG; AGC, DDE, 2D NR, 3D NR, DWDR, BLC, HLC, ROI; Поддержка видеоаналитики, дипазон измерения температур объектов -20°C+150°C, обнаружение возгорания, автоматическое слежение за горячими и холодными объектами, обнаружение курения и использования телефона, интеллектуальная сигнализация с прожектором и динамиком; слот для microSD до 256Гб; аудиовход/выход 1/1; тревожные вход/выход 2/2; 1 RJ45 10M/100M Ethernet; 1 RS485; питание DC12В/PoE; 14Вт; -30 °C...+60 °C; IP67; защита от перенапряжения до 6кВ
Производитель: Dahua Technology
- Код:
- 00054992
- Базовая единица
- шт
96 390 руб.

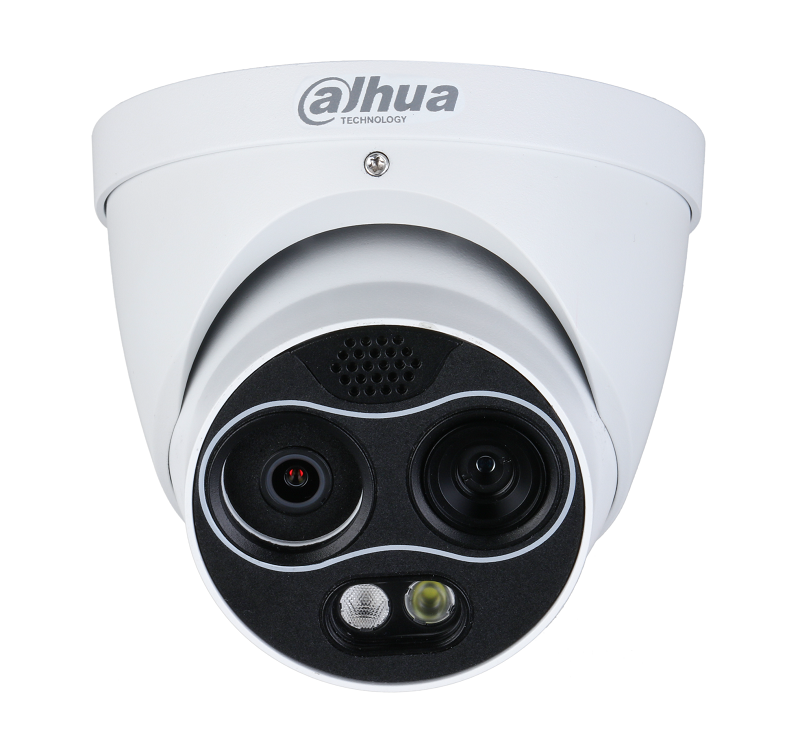

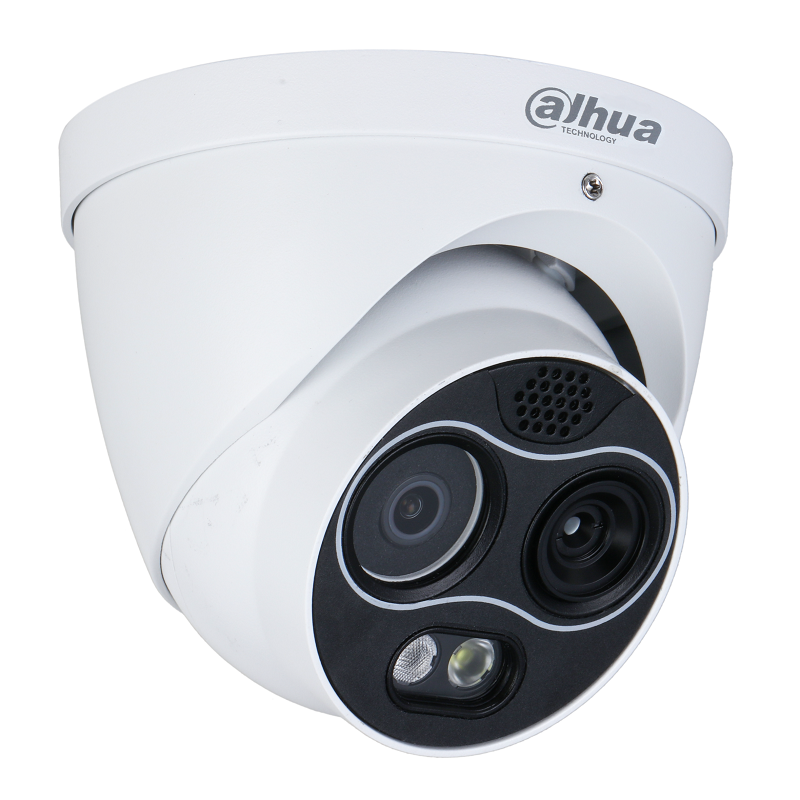

Thermal Network Mini Hybrid Eyeball Camera
- Vanadium oxide uncooled focal plane detector.
- 4Megapixel progressive scan CMOS.
- AI functions: heat detection, tripwire, human/vehicle classification, smoking detection, and call detection.
- Temperature measurement range of –20 °C to +550 °C.
- Flexible rules and alarms.
- Built-in white light and audio alarm.
- Remote auxiliary management.
- Dual image fusion (visible and thermal channels).
- Wide input voltage 12 VDC ± 20%, and PoE.
- IP67 rated.
Технические характеристики
| Thermal | |
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Max. Resolution | 256 (H) × 192 (V) |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm–14 μm |
| Thermal Sensitivity (NETD) | < 40 mK (@f/1.0, 25 Hz, 300 K) |
| Field of View | 7 mm: H: 24°; V: 18° |
| Close Focus Distance | 7 mm: 1 m (3.28 ft) |
| Detection Distance① |
7 mm: Vehicle: 897 m (2,942.91 ft); Human: 292 m (958.01 ft) |
| Recognition Distance② |
7 mm: Vehicle: 220 m (721.78 ft); Human: 75 m (246.06 ft) |
| Identification Distance③ |
7 mm: Vehicle: 111 m (364.17 ft); Human: 38 m (124.67 ft) |
|
Note: ①Detection Distance: Detects objects, but cannot recognize their characteristics (objects must cover more than 3.6 pixels of the image). ②Recognition Distance: Classifies objects into general categories, such as human, vehicle (the object must cover more than 14 pixels of the image). ③Identification Distance: Classifies objects into specific categories based on their characteristics, such as engineering truck, car (the object must cover more than 28 pixels of the image). |
|
| Aperture | F1.0 |
|
Digital Detail Enhancement (DDE) |
Yes |
| Digital Zoom | 16 levels |
| AGC | Auto; Manual |
| Noise Reduction | 2D NR; 3D NR |
| Image Flip | 180° |
| Color Palettes | 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter) |
| Fusion Mode | 3 (Warm color; Cool color; Ironred) |
| Visible | |
| Image Sensor | 1/2.7'' CMOS |
| Max. Resolution | 2336 (H) × 1752 (V) |
| Pixel | 4 MP |
| Electronic Shutter Speed | 1/30,000 s–1 s |
| Min. Illumination |
Color: 0.05 lux Black & white: 0.005 lux 0 lux (IR on) |
| IR Illumination Distance | 30 m (98.43 ft) |
| IR Illuminator On/Off Control | Auto; Manual |
| Aperture | 8 mm: F2.0 |
| Field of View | 8 mm: H: 33.4°; V: 25° |
| Focus Control | Fixed |
| Close Focus Distance | 8 mm: 2.5 m (8.2 ft) |
| Day/Night | Auto (ICR); Color; B/W |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes |
| White Balance | Auto; Manual; Indoor; Outdoor; Tracking; Street lamp; Natural |
| AGC | Auto; Manual |
| Noise Reduction | 2D NR; 3D NR |
| S/N Ratio | ≥55 dB |
| Region of Interest (RoI) | Yes |
| Image Flip | 180° |
| Exposure Compensation | Yes |
| Intelligence | |
| General Intelligence | Tripwire; Intrusion |
| Advanced Intelligence |
Heat Detection & Alarm Cold & Hot Spot Trace Human & Vehicle Classification Smoking Detection Call Detection |
| Temperature Measurement | |
| Temperature Range |
Low Temperature Mode: –20 °C to +150 °C (–4 °F to +302 °F) High Temperature Mode: 0 °C to +550 °C (+32 °F to +1022 °F) |
| Temperature Accuracy | Max (± 2 °C, ± 2%) Operating Temperature: –20 °C to +50 °C (–4 °F to +122 °F) |
| Temperature Mode |
Spot: 12 Line: 12 Area: 12 Support 12 rules simultaneously |
| Video and Audio | |
| Video Compression | H.265; H.264; H.264H; MJPEG |
| Resolution |
Thermal: Main Stream: 1280 × 960 (1.3M); XVGA (1024 × 768); VGA (640 × 480); 256 × 192; 1280 × 960 (by default) Sub Stream: VGA (640 × 480); 256 × 192; 256 × 192 (by default) Visual: Main Stream: 2336 × 1752; 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); 2336 × 1752 (by default)Sub Stream: 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288); 352 × 288 (by default) |
| Frame Rate |
Thermal 50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default Visual 50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default |
| Audio Compression | G.711a; G.711mu; PCM |
| Network | |
| Protocol | HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP |
| Edge Storage | Micro SD card (256 G) |
| Interoperability | ONVIF; CGI; DaHua SDK |
| Browser |
IE: IE 8 and later Google: 42 and earlier Firefox: 42 and earlier |
| User/Host | 10 |
| Security | Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access |
| Port | |
| Network | 1 × RJ-45 (10/100 Base-T) |
| Audio Input | 1 |
| Audio Output | 1 |
| Alarm Input | 2 |
| Alarm Output | 2 |
| RS-485 | 1 pair |
| Power | |
| Power Supply | 12 VDC, 1.2 A ± 20%; PoE |
| Power Consumption |
Basic: <3 W (12 VDC, LED off); 3.5 W (PoE) Max: <7 W (12 VDC, LED on, heater on); 9 W (PoE) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Storage Temperature | –30 °C to +70 °C (–22 °F to ﹢158 °F) |
| Operating Humidity | ≤95% |
| Protection | IP67 |
| Structure | |
| Product Dimensions | 122 mm × 122 mm × 112 mm (4.80" × 4.80" × 4.41") (L × W × H) |
| Packaging Dimensions | 155 mm × 155 mm × 135 mm (6.10" × 6.10" × 5.31") (L × W × H) |
| Net Weight | ≤0.85 kg (1.87 lb) |
| Gross Weight | ≤1 kg (2.20 lb) |
| Heat Detection Distance | |
| Focal Length | Max. Distance |
| 7 mm | 86 m (282.15 ft) |
|
Note: The table displays the measured distances obtained from using the target size 0.2 m × 0.2 m for testing in an environment where the temperature is 23 °C and the relative humidity is below 60%. The table is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more. |
|
| Temperature Measurement Range | |
| Focal Length | Min. Distance - Max. Distance |
| 7 mm | 2 m (6.56 ft) - 8 m (26.25 ft) |
|
Note: The table displays the measured distances obtained from using the target size 0.1 m × 0.1 m for testing in an environment where the temperature is 23 °C and the relative humidity is below 60%. The table is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more. |
|
