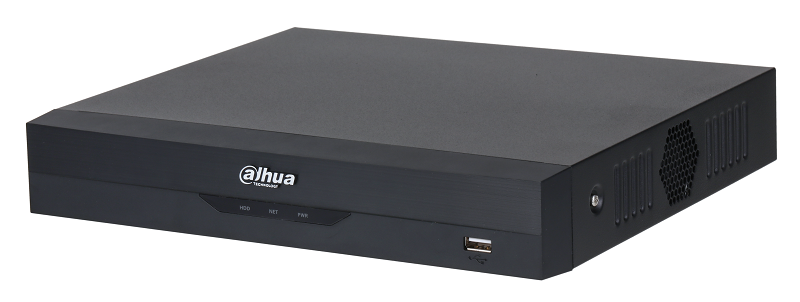

DH-XVR5108HS-5M-I3
8-канальный HDCVI-видеорегистратор с FR, HDCVI, AHD, TVI, IP, CVBS; отображение: до 5Мп; запись: 4кн 5Мп@12к/с/5M-N@25к/с, остальные: 5M-N@12к/с; 4кн 4M-N/1080p@25к/с, остальные 4M-N@15к/с/1080p@12к/с; 1080N@25к/с; кодирование: AI-Coding, H.265+, H.265, H.264+, H.264; IP-каналы: до 12 каналов до 6Мп; накопители: 1 SATA III до 16Тбайт; видеоаналитика: 2кн распознавание лиц, 4кн охрана периметра, 8кн интеллектуальный детектор движения SMD Plus, интеллектуальный поиск, контроль кассовых операций видеовыходы: 1 HDMI, 1 VGA; сеть: 1 RJ45 100Мбит/с; аудиовх/вых: 1/1; питание: 12В(DC)
Производитель: Dahua Technology
- Код:
- 00055294
- Базовая единица
- шт
21 190 руб.
8CH Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder
- 2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
- 8-channel SMD Plus for analog channels or 12-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
- 4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
- 2-channel face recognition for analog channels which supports face comparison.
- 8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
- Supports HDCVI, AHD, TVI, CVBS and IP video input.
- Supports up to 12-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 64 Mbps.
- Smart H.265+ and H.265 dual-stream video compression.
- IoT and POS capabilities.
Технические характеристики
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web; Local GUI |
| Quick Pick | |
| QuickPick 2.0 AI by Recorder (Number of Channels) | 2 channels |
| Perimeter Protection | |
| Perimeter Performance AI by Recorder (Number of Channels) |
Advanced Mode: 2 channels, 10 IVS rules for each channel General Mode: 4 channels, 10 IVS rules for each channel |
| Face Detection | |
| Face Attributes | 6 attributes |
| Face Detection Performance of AI by Recorder (Number of Channels) | 2 channels (up to 8 face images/s each channel) |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 10,000 images. |
| Face Recognition Performance of AI by Recorder (Number of Channels) | 2 channels |
| SMD Plus | |
| SMD Plus by Recorder | 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | 12 channels |
| AI Video Quality Analytics | |
| AI Video Quality Analytics by Recorder | 8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white |
| Scene Changing | |
| Scene Changing by Recorder | 1 channel |
| Irregular Black Block Masking | |
| Irregular Black Block Masking by Recorder | 1 channel |
| Audio and Video | |
| Analog Camera Input | 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
| Camera Input |
1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30 fps. 2. TVI: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. |
| IP Camera Input |
Up to 12 channels of IPC access 4 IP channels by default + 8 channels (analog channels are converted to IP channels) Incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps *After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection and QuickPick 2.0 cannot be used. |
| Encoding Capacity |
Encode Enhancement disabled： Main stream: 5M-N@(1 fps –12 fps); 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps) Sub stream: D1/CIF@(1 fps–15 fps) Encode Enhancement enabled： Main stream: 4-ch 5 MP@(1 fps-12 fps)/5M-N@(1 fps-25 fps), others 5M-N@(1 fps-12 fps); 4-ch 4M-N/1080p@(1 fps-25 fps), others 4M-N@(1 fps-15 fps)/1080p@(1 fps-12 fps); 1080N/720p/960H/D1/CIF@(1 fps-25/30 fps) Sub stream: D1/CIF@(1 fps-15 fps) It changes to D1/CIF@(1 fps-7 fps) when Main stream is 5 MP/5M-N/4M-N/1080p. *When Encode Enhancement is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and QuickPick 2.0 cannot be used. |
| Dual-stream | Yes |
| Video Bit Rate | 32 kbps–6144 kbps |
| Audio Sampling | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps |
| Video Output |
1 HDMI, 1 VGA HDMI: 2560 × 1440, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display |
When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16 |
| Third-party Camera Access | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
| Compression Standard | |
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 23.12 (Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Recording Playback | |
| Record Mode | General; alarm; motion detection; intelligent; POS |
| Recording Playback | 1/4/9 |
| Backup Method | USB device and network |
| Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback |
| Alarm | |
| General Alarm | Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm |
| Anomaly Alarm | Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
| Intelligent Alarm | Face detection; face recognition; perimeter protection; SMD Plus |
| Alarm Linkage | Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email |

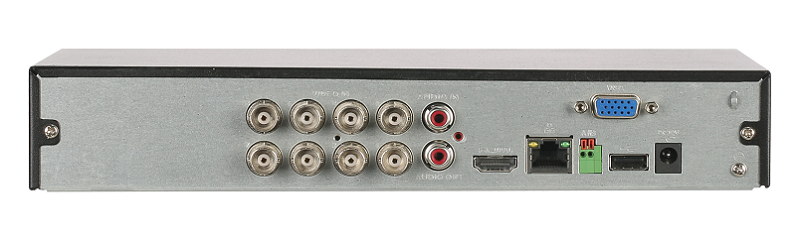

| Ports | |
| Audio Input |
1-channel RCA 8-channel BNC (Coaxial Audio) |
| Audio Output | 1-channel RCA |
| Two-way Talk | Yes (share the same audio input with the first channel) |
| Disk Interface | 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature. |
| RS-485 | 1 |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 12 VDC, 2 A |
| Power Consumption | <7 W (without HDD) |
| Net Weight | 0.97 kg (2.14 lb) |
| Gross Weight | 1.39 kg (3.07 lb) |
| Product Dimensions | 260.0 mm × 237.8 mm × 47.6 mm (10.24" × 9.36" × 1.87") (W × D × H) |
| Packaging Dimensions | 344.0 mm × 89.0 mm × 287.0 mm (13.54" × 3.50" × 11.30") (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Installation | Desktop |
| Certifications |
CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014 |
