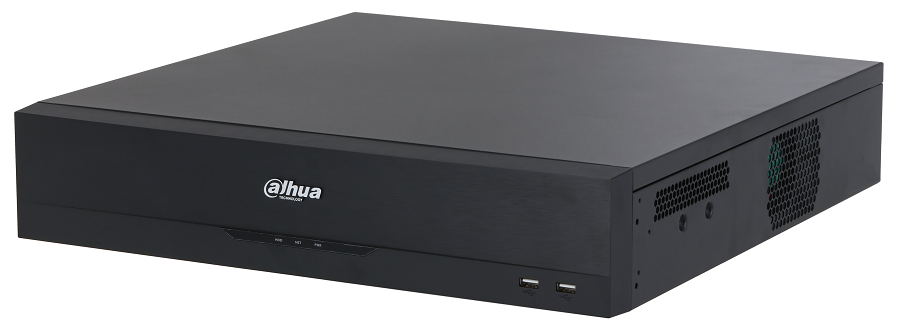

DH-XVR5832S-I3
32-канальный HDCVI-видеорегистратор с FR, HDCVI, AHD, TVI, IP, CVBS; отображение: до 5Мп; запись: до 5M-N@10к/с, 1080P@15к/с, 1080N@25к/с; кодирование: AI-Coding, H.265+, H.265, H.264+, H.264; IP-каналы: до 32 каналов до 8Мп; накопители: 8 SATA III до 10Тбайт; видеоаналитика: 2кн распознавание лиц, 2кн охрана периметра, 16кн интеллектуальный детектор движения SMD Plus, интеллектуальный поиск, контроль кассовых операций видеовыходы: 2 HDMI, 1 VGA, 1TV; сеть: 1 RJ45 1000Мбит/с; аудиовх/вых: 16/1; Трев: 16/6; питание: 100-240В 50Hz
Производитель: Dahua Technology
- Код:
- 00055301
- Базовая единица
- шт
125 290 руб.
32CH Penta-brid 5MP Value/1080P 2U 8HDDs WizSense Digital Video Recorder
- 32-channel SMD Plus for analog channels or 48-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
- 8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
- 2-channel face recognition for analog channels which supports face comparison.
- 16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
- Supports HDCVI, AHD, TVI, CVBS and IP video input.
- Supports up to 48-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 192 Mbps.
- Smart H.265+ and H.265 dual-stream video compression.
- IoT and POS capabilities.
Технические характеристики
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web; Local GUI |
| Perimeter Protection | |
| Perimeter Performance AI by Recorder (Number of Channels) |
Advanced Mode: 2 channels, 10 IVS rules for each channel General Mode: 8 channels, 10 IVS rules for each channel |
| Face Detection | |
| Face Attributes | 6 attributes |
| Face Detection Performance of AI by Recorder (Number of Channels) | 2 channels(up to 12 face images/s each channel) |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 10,000 images. |
| Face Recognition Performance of AI by Recorder (Number of Channels) | 2 channels |
| SMD Plus | |
| SMD Plus by Recorder | 32 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | 48 channels |
| AI Video Quality Analytics | |
| AI Video Quality Analytics by Recorder | 32 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white |
| Scene Changing | |
| Scene Changing by Recorder | 1 channel |
| Irregular Black Block Masking | |
| Irregular Black Block Masking by Recorder | 1 channel |
| Audio and Video | |
| Analog Camera Input | 32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
| Camera Input |
1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30 fps. 2. TVI: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. |
| IP Camera Input |
Up to 48 channels of IPC access 16 IP channels by default +32 channels (analog channels are converted to IP channels) incoming bandwidth: 192 Mbps, recording bandwidth: 192 Mbps and outgoing bandwidth: 192 Mbps *After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection cannot be used. |
| Encoding Capacity |
Main stream: 5 MP Mode: 4-ch 5 MP@(1 fps-6 fps); others 5M-N@(1 fps-12 fps) 5M-N Mode: 5M-N@(1 fps –12 fps); 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps) Sub stream: D1/CIF@(1 fps–15 fps) |
| Dual-stream | Yes |
| Video Bit Rate | 32 kbps–6144 kbps |
| Audio Sampling | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps |
| Video Output |
2 HDMI, 1 VGA, 1 TV HDMI 1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA/HDMI 2: 1920 × 1080, 1280 × 1024, 1280 × 720 *Heterogeneous video sources output for HDMI 2 is configurable. |
| Multi-screen Display | 1/4/8/9/16/25/36 |
| Third-party Camera Access | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
| Compression Standard | |
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 23.12 (Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Recording Playback | |
| Record Mode | General; alarm; motion detection; intelligent; POS |
| Recording Playback | 1/4/9/16 |
| Backup Method | USB device and network |
| Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback |
| Storage | |
| Disk Group | Yes |
| Alarm | |
| General Alarm | Motion detection; local alarm; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm |
| Anomaly Alarm | Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
| Intelligent Alarm | Face detection; face recognition; perimeter protection; SMD Plus |
| Alarm Linkage | Record; snapshot (panoramic); local alarm output; IPC external alarm output; audio; buzzer; log; preset; email |

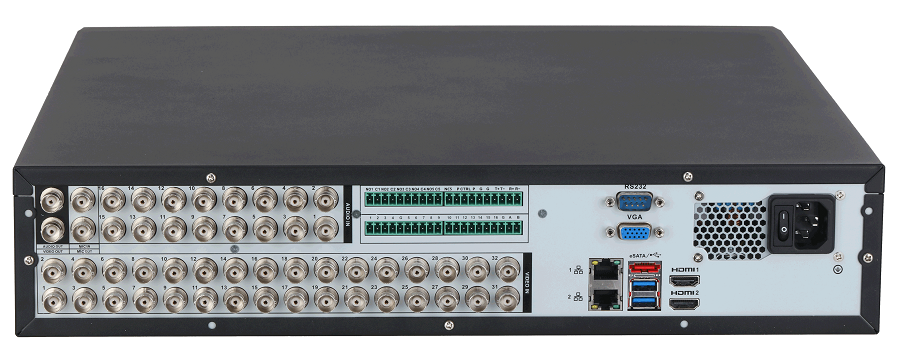

| Ports | |
| TV Output | 1 channel |
| Audio Input |
16-channel BNC(external) 32-channel BNC (Coaxial Audio) |
| Audio Output | 1-channel BNC |
| Two-way Talk | 1-channel BNC |
| Alarm Input | 16 channels |
| Alarm Output | 6 channels |
| Disk Interface | 8 SATA ports. Each disk can contain up to 16 TB. This limit varies depending on the environment temperature. |
| eSATA | 1 |
| RS-232 | 1 |
| RS-485 | 1 |
| USB | 4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports) |
| HDMI | 2 |
| VGA | 1 |
| Network Port | 2 (10/100/1000 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 100–240 VAC, 50±2% Hz |
| Power Consumption | <22 W (without HDD) |
| Net Weight | 6.9 kg (15.21 lb) |
| Gross Weight | 9.5 kg (20.94 lb) |
| Product Dimensions | 440.0 mm × 463.0 mm × 94.9 mm (17.32" × 18.23" × 3.73") (W × D × H) |
| Packaging Dimensions | 570.0 mm × 570.0 mm × 226.0 mm (22.44" × 22.44" × 8.90") (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Installation | Desktop |
| Certifications |
CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B |
