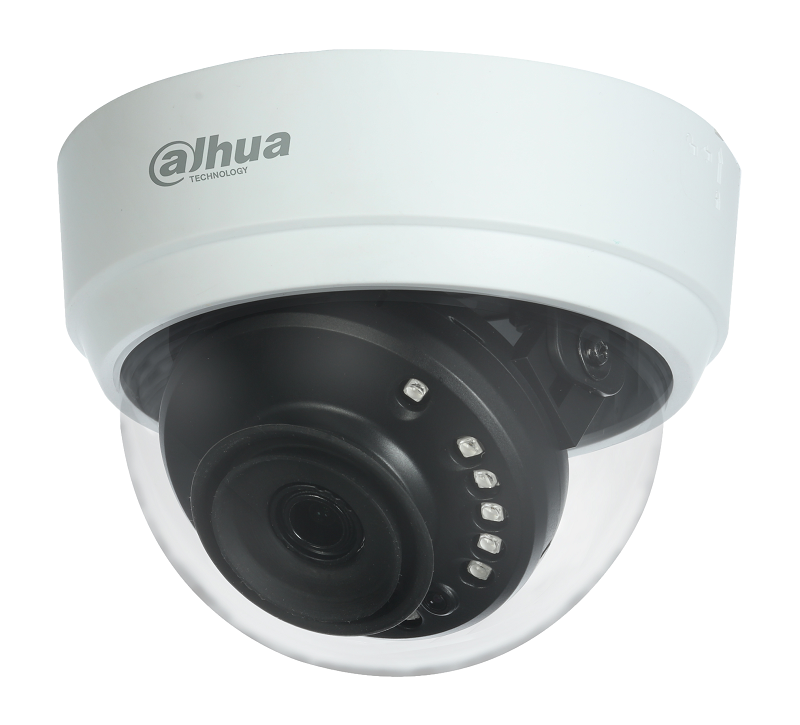

DH-HAC-D1A51P-0280B-S2
Купольная HDCVI-видеокамера, 5Мп; 1/2.7” CMOS; объектив 2.8мм; ИК-фильтр; 0.02лк@F2.0; ИК-подсветка до 20м; видеовыход: BNC (переключаемый HDCVI/TVI/AHD/CVBS); 25к/c@5Мп; 12В(DC); корпус: пластик;
Производитель: Dahua Technology
- Код:
- 00055304
- Базовая единица
- шт
4 590 руб.
5MP HDCVI Fixed IR Dome Camera
* The parameters and datasheets below can only be applied to A51-S2 series.
- Max. 25 fps@5MP (16:9 video output)
- CVI/CVBS/AHD/TVI switchable
- Max. IR length 20 m, Smart IR
- DC12V
Технические характеристики
| Camera | |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Pixel | 5MP |
| Scanning System | Progressive |
| Electronic Shutter Speed |
PAL: 1/25–1/100000s |
| Min. Illumination | 0.02 Lux/F2.0, 30IRE, 0 Lux IR on |
| S/N Ratio | More than 65 dB |
| Illumination Distance | 20 m (66 feet) |
| Illuminator On/Off Control | Auto;manual |
| Lens | |
| Lens Type | Fixed lens / Fixed iris |
| Mount Type | M12 |
| Focal Length | 2.8mm |
| Max Aperture | F2.0 |
| Angle of View |
2.8 mm: 125° × 106° × 56° (diagonal × horizontal × vertical) |
| Focus Control | N/A |
| Close Focus Distance |
2.8 mm: 0.8 m (2.6 ft) |
|
DORI distance Lens Detect Observe Recognize Identify |
2.8mm 56.0 m 22.4 m 11.2 m 5.6 m |
| Pan / Tilt / Rotation | |
| Pan/Tilt/Rotation |
Pan: 0° – 355° Tilt: 0° – 75° Rotation: 0° – 355° |
| Video | |
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (960 × 576/960 × 480) |
| Frame Rate |
CVI: 5M@25 fps; 4M@25fps; 1080P@25fps AHD: 4M@25 fps; TVI: 4M@25 fps; CVBS: 960H; |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Day/Night | Auto (ICR) / Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC / HLC / DWDR |
| WDR | DWDR |
| Gain Control | AGC |
| Noise Reduction | 2D |
| White Balance | Auto;manual |
| Smart IR | Yes |
| Mirror | Off/On |
| Privacy Masking | Off / On (8 area, rectangle) |
| Certifications | |
| Certifications |
CE (EN55032, EN55024, EN50130-4,EN60950-1, EN 62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
| Interface | |
| Audio Interface | N/A |
| Eelectrical | |
| Power Supply | 12V DC ±30% |
| Power Consumption | Max. 3.2 W (12V DC, IR on) |
| Environmental | |
| Operating Conditions |
–40°C to +45°C (–40°F to +113°F) / Less than 95% RH * Start up should be done at above –40°C (–40°F) |
| Storage Conditions | –40°C to +45°C (–40°F to +113°F) / Less than 95% RH |
| Ingress Protection & Vandal Resistance | N/A |
| Construction | |
| Casing | Plastic |
| Dimensions | Φ100 mm×74.1 mm(Φ3.9" × 2.92") |
| Net Weight | 0.14 kg (0.31 lb) |
| Gross Weight | 0.23 kg (0.51 lb) |
