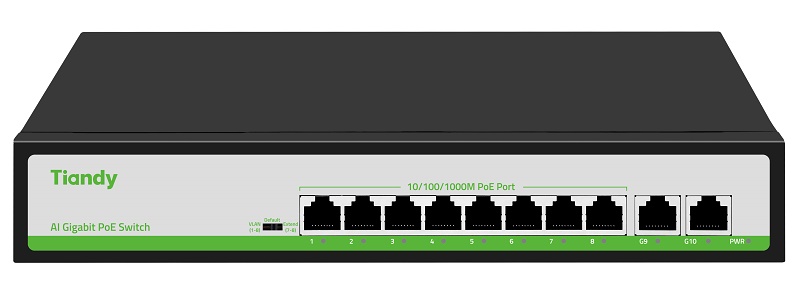

TC-P3S010 Spec:G/0820/AT/110
Неуправляемый РоЕ коммутатор, 10 портов (8 РоЕ RJ-45 х1Гбит/с + 2 Uplink RJ-45 х1Гбит/с); РоЕ IEEE802.3af/at до 30Вт/порт; РоЕ бюджет 110Вт; Поддержка VLAN, PoE Watchdog, PoE Priority (1-8 порты), Extend режим 220м (7-8 порты); AC 100-240В; -10~50℃; 315х215х85мм, вес: 1.38 кг.
Производитель: Tiandy
- Код:
- 00055443
- Артикул
- 1A.20010.020140
- Базовая единица
- шт
10 290 руб.
- 8 gigabit PoE network ports+2 gigabit network ports ·Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3u, IEEE 802.3x standards
- Ethernet port supports 10/100/1000M adaptation
- PoE port automatically turns on watchdog in VLAN and Extend mode
- Flow control mode: full duplex adopts IEEE 802.3x standard, and half duplex adopts Back pressure standard
- Zero configuration feature, automatic supply to adaptive equipment
- The panel indicator monitors the working status and helps to analyze the fault
- Dial switch, supporting VLAN, Default and Extend modes
- Support 1-8 port POE power supply priority, and the port priority is high
- Support port lightning surge: common mode 4KV, differential mode 2KV (Class C); Electrostatic ESD: air 8KV, contact 6KV (Class C)
Технические характеристики
|
I/O Interface |
|
| Power | AC INPUT (100-240 V) |
| Ethernet | 8* Gigabit PoE Ethernet Ports, 2* Gigabit Uplink Ethernet Port |
|
Performance |
|
| Bandwidth | 20Gbps |
| Throughput | 14.88Mpps |
| Packet Buffer | 448K |
| MAC Address | 2K |
| Transfer Mode | Storage & Forward |
|
Standard |
|
| Network Protocol |
IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) |
| PoE Protocol |
IEEE802.3af (15.4W) IEEE802.3at (30W) POE port output voltage: DC 52V POE power supply core: 1/2+; 3/6 |
| Industrial Standard | EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge) |
| Network Medium |
10Base-T: Cat3, 4, 5 or above UTP(≤100m) 100Base-TX: Cat5 or above UTP(≤100m) 1000Base-TX: Cat5 or above UTP(≤100m) |
|
Function |
|
| LED Indicators | PWR (Power),1-10 Green Light (Link & Data) |
| PWR |
On: Powered on Off: Powered off |
| POE LED Buttons | Dual color light selection: default green (link data), switch yellow light (POE) |
|
DIP Switch |
|
| VLAN | VLAN: Isolation mode. Ports 1 to 8 are isolated and communicate with the upstream interface. (enable POE watchdog) |
| Default | Default: common mode, all interfaces can communicate with each other, the transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive; The port AI mode is disabled. |
| Extend | Extend: Link extension mode, 7-8 ports force 10M, link 220M (enable POE watchdog) |
|
Environment |
|
| Working Environment |
Working Temperature: -10~50 ℃ Storage Temperature: -40~70 ℃ Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~95%, non-condensing |
|
Physical Specifications |
|

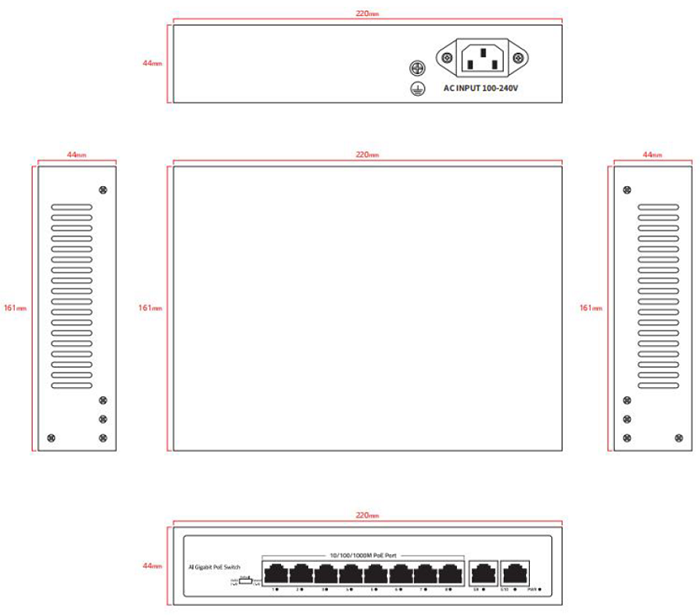

| Dimension |
Product Dimension: 220*161*44mmm Package Dimension: 315*215*85mm N.W: 0.88kg G.W: 1.38kg |
| Packing Info |
Carton MEAS: 445*445*335mm Packing Qty: 10 units Packing Weight: 14.8KG |
| Power Voltage |
Input Voltage: AC 100-240 V 50-60Hz Supply Power: 52V /2.3A |
| Power |
Mainboard power consumption: maximum 10W POE power: maximum 110W |
