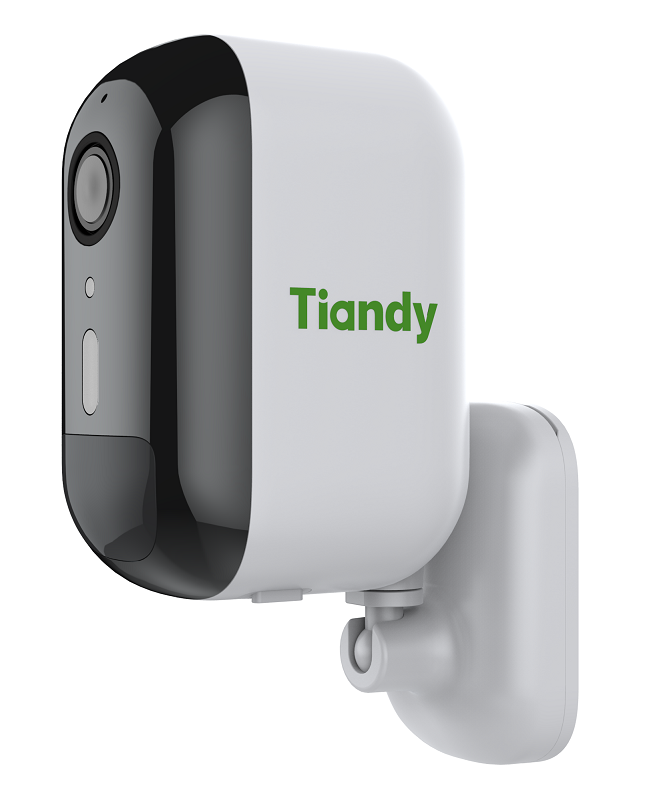

TC-C32CN Spec:I3W/U/WIFI/2.8mm/V4.0
Кубическая автономная IP камера, 2Мп, 1920×1080@25к/c, WDR 120 дБ, цвет: 0.02лк, S+265, H.265 (HP), S+264, H.264 (HP, MP, BP), объектив 2.8мм, встроенные микрофон и динамик, G.711A, G.711U 8кГц, 16кГц , только DC5В USB type-C, адаптивная ИК подсветка до 30м + белая подсветка до 15м, защита IP65, современный WEB интерфейс без плагинов, аналитика: 3 Смарт( детекция человека), без тревожных входов/выходов, слот для microSD
Производитель: Tiandy
- Код:
- 00055458
- Артикул
- 1D.20010.021581
- Базовая единица
- шт
10 890 руб.
- Разрешение 2MP 1920×1080@25fps
- Матрица 1/2.9"CMOS
- Color:0.02Lux.
- Объектив 2.8мм
- Кодек сжатия S+265/H.265/H.264B/H.264M/H.264H
- WI-FI IEEE802.11b/ 802.11g/802.11n
- Встроенный микрофон и динамик
- Класс защиты IP65
- Smart ИК 30м LED 15м
- Слот micro SD
Технические характеристики
|
Camera |
|
| Image Sensor | 1/2.9"CMOS |
| Min. Illumination | Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR |
| Shutter Time | 1s~1/100000s |
| Day&Night | IR-cut filter with auto switch (ICR) |
| Smart IR | Yes |
| WDR | 120dB |
| S/N | >50dB |
| Angle Adjustment | 0~360°(P); 0~75°(T); 0~360°(R) |
|
Lens |
|
| Lens Type | Fixed focal lens |
| Focal Length | 2.8mm |
| Lens Mount | M12 |
| Aperture Range | F1.6 |
| Aperture Type | Fixed |
| Field of View | 103.8°(H); 56.8°(V); 120.4°(D) |
| DORI Distance | Detect:40.0m Observe:15.87m Recognize:8.0m Identify:4.0m |
|
Illuminator |
|
| IR LEDs | 2 |
| IR Distance | Up to 30m |
| Wavelength | 850nm |
| White LEDs | 2 |
| Whitelight Distance | 15m |
|
Compression Standard |
|
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
| Video Bit Rate | 32k~4Mbps |
| Audio Compression | G.711A/G.711U |
| Audio Sampling Rate | 8kHz/16kHz |
|
Image |
|
| Max. Resolution | 2MP,1920×1080@25fps |
| Main Stream | PAL:20fps(1920×1080) NTSC:20fps(1920×1080) |
| Sub Stream | PAL:20fps(704×576) NTSC:20fps(704×480) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto |
| OSD | Overlay of additional characters in 5 regions, 2 lines, with a maximum of 127 characters or 42 Chinese characters per region; 16*16/32*32/48*48 |
|
Feature |
|
| Exceptions Alarm | Disk Full; Disk R/W Error |
| Linkage Method | Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture |
|
Network |
|
| Protocols | TCP/IP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast |
| System Compatibility | SDK |
| Remote Connection | ≤2 |
| Moblie Client | EasyLive Plus |
|
Wi-Fi |
|
| Transmission Distance | Up tp 50m( based on actual environment) |
| Wireless Standard | IEEE802.11b/ 802.11g/802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | 20/40MHz |
| Wi-Fi Security | WPA-PSK/WPA2-PSK |
|
Interface |
|
| Built-in Mic | Yes |
| Built-in Speaker | Yes |
| Reset Button | Yes |
| On-board Storage | Support microSD/microSDHC/microSDXC card,up to 256GB |
|
General |
|
| Operating Temperature | -10℃~50℃(14℉~122℉) |
| Operating Humidity | ≤95%RH |
| Storage Temperature | -10℃~50℃(14℉~122℉) |
| Storage Humidity | 10%~95%RH(non-condensing) |
| Power Supply | DC5V/2A |
| Protection | Surge500V; ESD6000V; IP65 |
| Boundary Dimensions | 80(L)44W)73(H)mm |
| Package Dimensions | 146(L)83(W)108(H)mm |
| GrossWeight | 0.38kg |
