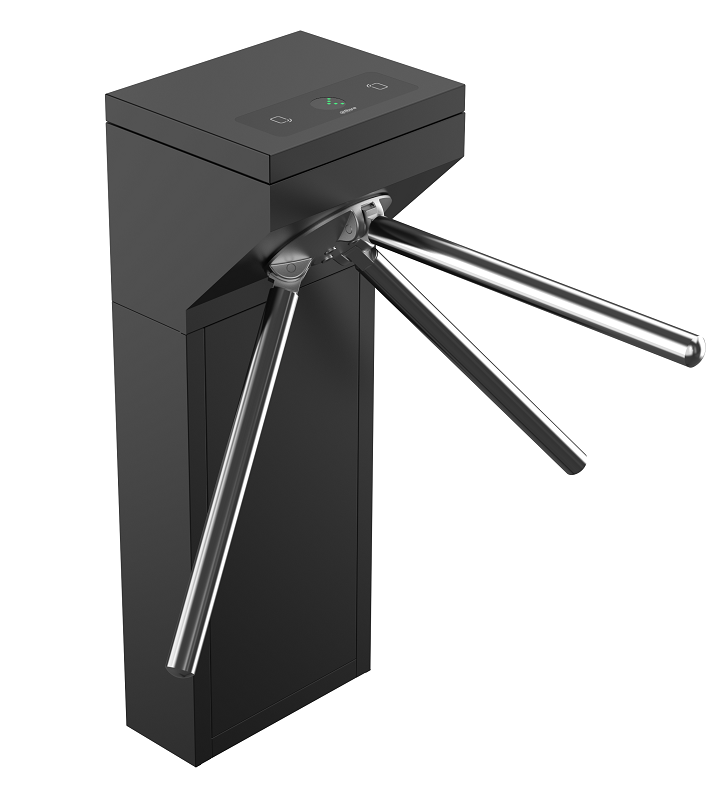

DHI-ASGG120B
Турникеты прочих производителей
Турникет трипод с контроллером, Холоднокатаная сталь, Питание 100-240В AC, Потребление до 17Вт, До 2-х направлений прохода, Пропускная способность от 20 до 30 ч/мин, Ширина прохода 600мм, Встроенные считыватель и контроллер

DHI-ASGG120B

Турникет трипод с контроллером, Холоднокатаная сталь, Питание 100-240В AC, Потребление до 17Вт, До 2-х направлений прохода, Пропускная способность от 20 до 30 ч/мин, Ширина прохода 600мм, Встроенные считыватель и контроллер

Производитель: Dahua Technology

Код:
00055492
Базовая единица
шт
71 490 руб.

Tripod Turnstile

  • The cabinet has a thickness of 0.8 mm and was developed using a specialized powder coating process that is compatible with cold plates.
  • The arm automatically falls during a fire and power failure. (When the arm falls, the turnstile arm must be pushed down and then lifted up again).
  • MCBF (Mean Cycles between Failures) is no less than 2 million times.
  • Built-in anti-tailing system.
  • Automatically closes when left open for too long.
  • Supports configuring the settings related to people passing and memorizing passing data for entry and exit.
  • Features 9 modes for entry and exit including controlled, prohibited, and free. Combine these modes for more options.

Технические характеристики

System
Main Processor Embedded Processor
SDK Yes
Basic
Product Type Tripod turnstile
Status Indicator Light Solid red: Authorization mode on standby
Solid green: Unidirectional mode
Flashes green: Bi-directional mode
Casing Material Cold plate
Function
Online Update Yes
Performance
MCBF ≥2 million times
Card Reading Distance 0–3 cm
Max Custom Passage Width Stainless steel: 600 mm
Passing Speed 20–30 people per min (this is affected by the people who enter and the passing mode).
Unlock/Lock Speed ≥0.7 sec
Cabinet Thickness 0.8 mm (0.03")
Top Cover Thickness 1.2 mm (0.05")
Frame Thickness 0.8 mm (0.03")
Barrier Material Stainless steel
Type of Face Module Installation Hole Simple
Location of Face Module Installation Hole Entry;Exit
Number of Face Module Installation Holes 0
Number of Access Controllers 1
Card Swiping Yes
Standard Height of Customized Barrier Stainless steel: 824 mm
General
Power Supply 100–240 VAC, 1.5 A
Vandal-proof Rating IK06, IK08
Power Consumption 7.2 W, authorization is required for both entry and exit;
17 W, no authorization is required for both entry and exit
Product Dimensions 350 mm × 300 mm × 950 mm (13.78" × 11.81" × 37.40")（L × W × H）
Module Protruding Size 0 mm
Packaging Dimensions 1,037 mm × 697 mm × 443 mm (40.83" × 27.44" × 17.44")（L × W × H）
Gross Weight 17 kg (37.48 lb)
Operating Temperature –25 °C to +55 °C (–13 °F to +131 °F)
Operating Humidity 5%–90% (RH), non-condensing
Operating Environment Indoor
Storage Temperature 0 °C to +40 °C (+32 °F to +104 °F)
Storage Humidity 30%-75%
