DHI-ASGG100FL
Турникет трипод, Сталь SUS304, Питание 100-240В AC, Потребление до 17Вт, До 2-х направлений прохода, Пропускная способность от 20 до 30 ч/мин, Ширина прохода 600мм
Производитель: Dahua Technology
- Код:
- 00055493
- Базовая единица
- шт
55 390 руб.

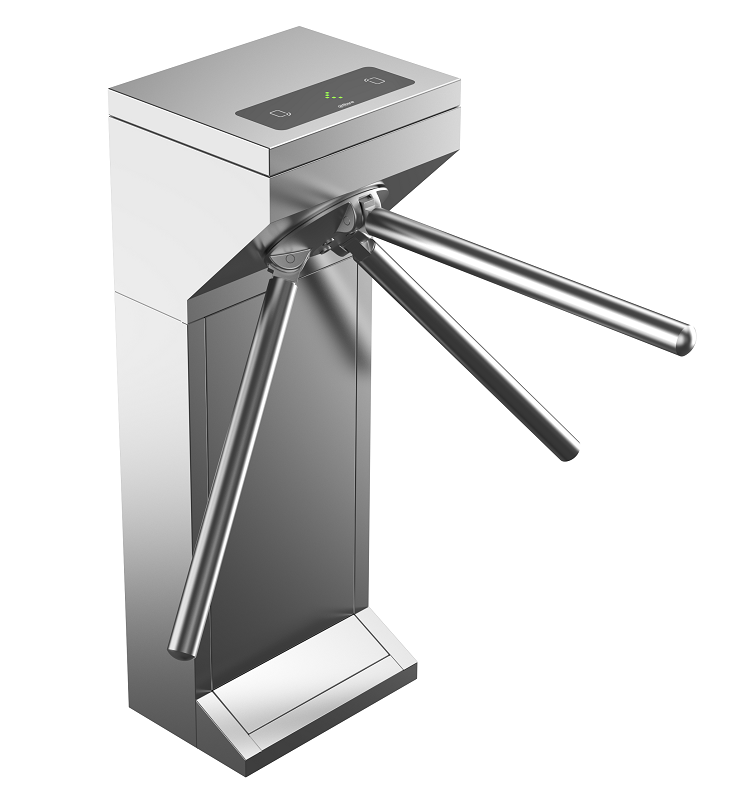

Tripod Turnstile
- 304 stainless steel cabinet with a thickness of 0.8 mm.
- The arm automatically falls during a fire and power failure. (When the arm falls, the turnstile arm must be pushed down and then lifted up again).
- MCBF (Mean Cycles between Failures) is no less than 2 million times.
- Built-in anti-tailing system.
- Automatically closes when left open for too long.
Технические характеристики
| System | |
| Main Processor | Embedded Processor |
| Basic | |
| Product Type | Tripod turnstile |
| Status Indicator Light |
Solid red: Authorization mode on standby Solid green: Unidirectional mode Flashes green: Bi-directional mode |
| Casing Material | SUS304 |
| Performance | |
| MCBF | ≥2 million times |
| Max Custom Passage Width | Stainless steel: 600 mm |
| Passing Speed | 20–30 people per min (this is affected by the people who enter and the passing mode). |
| Unlock/Lock Speed | ≥0.7 sec |
| Cabinet Thickness | 0.8 mm (0.03") |
| Top Cover Thickness | 1.2 mm (0.05") |
| Frame Thickness | 0.8 mm (0.03") |
| Barrier Material | Stainless steel |
| Type of Face Module Installation Hole | Simple |
| Location of Face Module Installation Hole | Entry;Exit |
| Number of Face Module Installation Holes | 0 |
| Number of Access Controllers | 0 |
| Standard Height of Customized Barrier | Stainless steel: 824 mm |
| General | |
| Power Supply | 24 VDC, 1.5 A |
| Vandal-proof Rating | IK06, IK08 |
| Power Consumption |
7.2 W, authorization is required for both entry and exit; 17 W, no authorization is required for both entry and exit |
| Product Dimensions | 350 mm × 300 mm × 950 mm (13.78" × 11.81" × 37.40")（L × W × H） |
| Module Protruding Size | 0 mm |
| Packaging Dimensions | 1,037 mm × 697 mm × 443 mm (40.83" × 27.44" × 17.44")（L × W × H） |
| Gross Weight | 17 kg (37.48 lb) |
| Operating Temperature | –25 °C to +70 °C (–13 °F to +158 °F) |
| Operating Humidity | 5%–90% (RH), non-condensing |
| Operating Environment | Indoor;Outdoor |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Humidity | 30%-75% |
