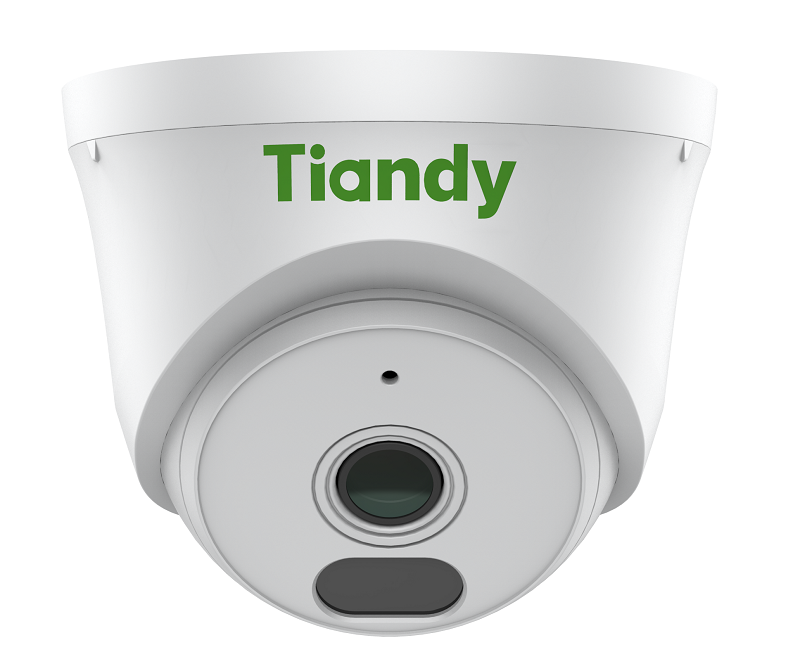

TC-C320N Spec:AK/I3W/E/Y/2.8mm/V2.0 (AK Series)
IP камера купольная "турель", 2Мп, 1920×1080@30к/c, DWDR, цвет: 0.02лк, S+265, H.265 (HP), S+264, H.264 (HP, MP, BP), объектив 2.8мм, встроенный микрофон, G.711A, G.711U 8кГц , только PoE 802.3af, ИК подсветка до 30м + белая подсветка до 15м, IP40, современный WEB интерфейс без плагинов, детектор движения
Производитель: Tiandy
- Код:
- 00056677
- Артикул
- 1D.20010.022562
- Базовая единица
- шт
3 490 руб.
- Разрешение 2МП 1/3" CMOS
- Встроенный микрофон
- Угол обзора 94,4 градусов
- Объектив 2,8 мм
- Мин. световая чувствительность: Люкс 0.02
- Кодек сжатия S+265/H.265(HP)/S+264/H.264(HP, MP, BP)
- Smart ИК 30м и LED 15м
- Улучшения BLC/HLC/Антитуман/3D DNR
- Совместимость ONVIF (PROFILE S/T)
- Защита IP40, POE 3W
Технические характеристики
|
Camera |
|
| Image Sensor | 1/3"CMOS |
| Min. Illumination | Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR |
| Shutter Time | 1s~1/100000s |
| Day&Night | IR-cut filter with auto switch (ICR) |
| Smart IR | Yes |
| WDR | DWDR |
| S/N | >47.8dB |
| Angle Adjustment | 0~340°(P); 0~75°(T); 0~360°(R) |
|
Lens |
|
| Lens Type | Fixed focal lens |
| Focal Length | 2.8mm |
| Lens Mount | M12 |
| Aperture Range | F1.6 |
| Aperture Type | Fixed |
| Field of View | 94.4°(H); 53.2°(V); 108.2°(D) |
| DORI Distance | Detect:41.48m Observe:16.46m Recognize:8.3m Identify:4.1m |
|
Illuminator |
|
| IR LEDs | 2 |
| IR Distance | Up to 30m |
| Wavelength | 850nm |
| White LEDs | 2 |
| Whitelight Distance | Up to 15m |
|
Compression Standard |
|
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
| Video Bit Rate | 32k~4Mbps |
| Audio Compression | G.711A/G.711U |
| Audio Sampling Rate | 8kHz |
|
Image |
|
| Max. Resolution | 2MP,1920×1080@30fps |
| Main Stream | PAL:25fps(1920×1080, 1280×720, 704×576, 640×480) NTSC:30fps(1920×1080, 1280×720, 704×480, 640×480) |
| Sub Stream | PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240, 640×360, 352×240) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
| OSD | Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48 |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
|
Feature |
|
| General Alarm | Motion Detection |
| Exceptions Alarm | IP Address Conflict |
|
Network |
|
| Protocols | HTTP; TCP/IP; UDP; ICMP; DHCP; DNS; NTP; IPv4; Telnet; Unicast; RTSP |
| System Compatibility | ONVIF(Profile S/T) ; SDK; CGI; Milestone; RTSP |
| Remote Connection | ≤2 |
| Client | Easy7 VMS |
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
|
Interface |
|
| Communication Interface | 1*RJ-45 (10/100 Base-T) |
| Built-in Mic | Yes |
|
General |
|
| Web Client Language | English |
| Operating Temperature | -30℃~60℃(-22℉~140℉) |
| Operating Humidity | ≤95%RH |
| Storage Temperature | -30℃~60℃(-22℉~140℉) |
| Storage Humidity | 10%~95%RH(non-condensing) |
| Power Supply | PoE:IEEE 802.3af,Max. 3W |
| Protection | Surge4000V; ESD6000V |
| Boundary Dimensions | 94(L)94(W)78(H)mm |
| Package Dimensions | 105(L)105(W)85(H)mm |
| GrossWeight | 0.17kg |
