DHI-VTO6541H-S2
Вызывная панель c распознаванием лиц, отпечатков пальцев и сенсорной клавиатурой, В устройстве применяется алгоритм распознавания лиц глубокого обучения.
Производитель: Dahua Technology
- Код:
- 00057320
- Базовая единица
- шт
57 790 руб.

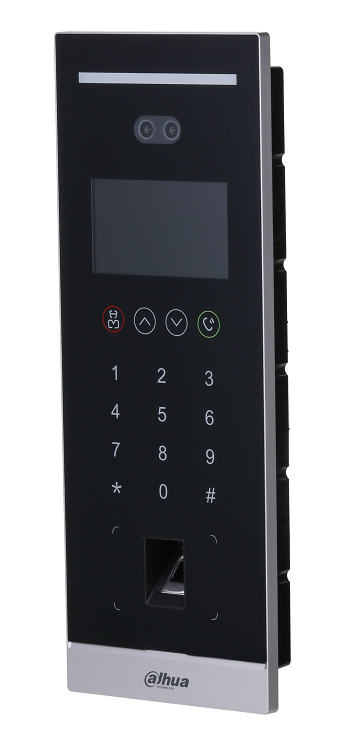

IP Face Recognition Apartment Door Station
- 4.3" LCD with a resolution of 800 × 480.
- 2 MP HD dual-lens camera.
- White light illuminators that help recognize the targets in darkness or low light environments.
- Supports 40,000 users, 20,000 faces, 20,000 cards, and 10,000 finger prints.
- Recognizes faces 0.3 to 1.5 m away (0.98 ft–4.92 ft) at an accuracy of 99.9%, and compares 1 face with N faces at the speed of 0.2 seconds/ person.
- Liveness detection is used to detect spoof attempt, such as using a photo or video to gain access.
- Offers multiple types of alarms such as duress, tamper, emergency and alarms from door detectors.
- Supports leaving audio and video messages when no one responds through the indoor monitor. (An SD card in VTH is required.)
- Supports multiple unlock methods including password, IC card, fingerprint, QR code (supported by DSS) and face, and unlocks remotely.
- Unlocks the door through the indoor monitor, management center and app.
- Provides 12 VDC, 500 mA power for the extension module or card reader.
- IP65 rated (Silicone sealant is required for the shell, see the quick start guide).
- Standard PoE power supply. If the VTO device with 12 V power output needs to charge the load, it should be connected to a PSE switch that complies with the 802.3.at standard.)
Технические характеристики
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux OS |
| Button Type | Touch button |
| Interoperability | CGI;ONVIF |
| Network Protocol | RTMP;HTTP/HTTPS;DNS;RTSP;SSH;ONVIF;SIP;RTP |
| Basic | |
| Screen Type | Non-touchscreen |
| Display Screen | 4.3-inch display screen |
| Screen Resolution | 800 (H) × 480 (V) |
| Camera | 1/2.8" 2MP CMOS high-definition, low illumination, dual cameras |
| Field of View | H: 95°; V: 50°; D: 110° |
| WDR | 120 dB |
| Noise Reduction | 3D NR |
| Video Compression | H.264; H.265 |
| Video Resolution |
Main stream: 720P/D1/WVGA; Sub stream: 1080P/720P/D1/WVGA/CIF/QVGA |
| Video Frame Rate | 25 fps |
| Video Bit Rate | 1,024 kbps–8,192 kbps |
| Light Compensation | Auto white light |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 channel |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bit Rate | 16 kHz, 16 bit |
| Function | |
| Communication Mode | Full digital |
| Verification Method | Fingerprint;Remote;Face Recognition;Card;Password |
| Auto Snapshot | Yes |
| Information Release | Receive and view text information released by the management center. |
| Leave Videos | Yes (SD card inserted in VTH is needed) |
| Web Configuration | Yes |
| Auto Registration | Yes |
| RFID | |
| Card Type | IC card |
| Performance | |
| Card Reading Distance | 0 cm–5 cm (IC card) |
| Issue Card Locally | Yes |
| Face Recognition Height Range | 1.1 m–2.2 m (3.61 ft–7.22 ft) |
| Face Recognition Distance | 0.3 m–2.0 m (0.98 ft–6.56 ft) |
| Face Recognition Accuracy | 99.9% |
| Face Recognition Time | 0.2 sec |
| Fingerprint Sensor Type | Capacitive |
| Fingerprint Comparison Time | ≤1.5 sec |
| Fingerprint Recognition Time | ≤1 sec |
| Casing Material | PC + ABS |
| Capacity | |
| Card Capacity | 20,000 |
| Face Image Capacity | 20,000 |
| Fingerprint Capacity | 10,000 |
| Port | |
| RS-485 | 1 |
| Wiegand | 1 (they can be set as an input or output port) |
| Alarm Input | 2 channels |
| Alarm Output | 2 channels |
| Power Output | 1 port (12 V, 500 mA) |
| Exit Button | 1 channel |
| Door Status Detection | 1 channel |
| Lock Control | 1 channel, open by default |
| Network Port | 1 × 10 Mbps/100 Mbps Ethernet port |
| Alarm | |
| Tamper Alarm | Yes |
| General | |
| Unlock Password Mode | User, public and duress passwords |
| Appearance Color | Silver |
| Power Supply |
12 VDC, 2 A; Standard PoE |
| Power Adapter | Optional |
| Installation | Flush Mount;Wall Mount |
| Certifications | CE |
| Accessory |
Power supply (optional); Flush mount box (optional) |
| Product Dimensions | 389 mm × 145 mm × 43 mm (15.31" × 5.71" × 1.69") |
| Protection | IP65 rated (Silicone sealant is required. See the quick start guide for more information). |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | 0%–90% (RH), non-condensing |
| Operating Altitude | 0 m–3,000 m (0 ft–9842.52 ft) |
| Power Consumption | ≤5 W (standby), ≤18 W (working) |
| Gross Weight | 1.50 kg (3.31 lb) |
